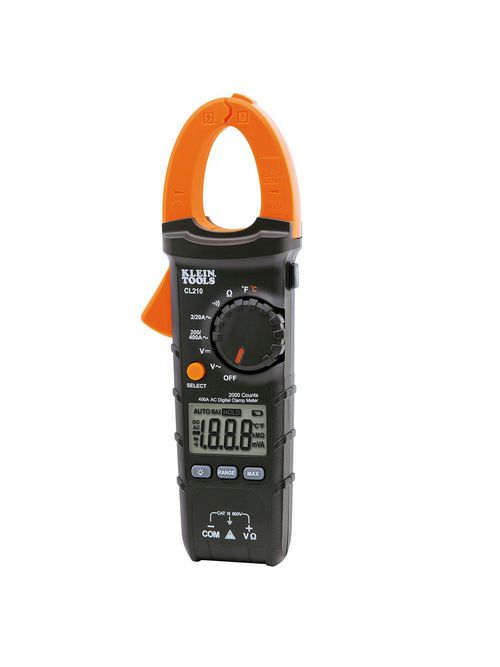

Klein CL210 Clamp Meter, Digital AC Auto-Ranging Tester with Thermocouple Probe
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$59.97/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # CL210
North Coast Part # 1348219

Features

  • Clamp Meter measures AC current via the clamp and AC/DC voltage, resistance and continuity via test-leads
  • Thermocouple probe measures temperature
  • Built to withstand a 3.3-foot (1 m) drop
  • CAT III 600V, Class 2, Double insulation safety rating
  • Backlit display for clear readings
  • Powers off automatically after 15 minutes of non-use to conserve battery life
  • Includes a carrying case, test leads and 3 x AAA batteries
  • Low battery indicator and easily accessible battery compartment
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

Warnings

  • Do not attempt to measure resistance or continuity on live circuits.
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.

Specifications

  • Application: Measures AC Current
  • Overall Height: 1.61" (4.1 cm)
  • Included: Carrying Case, 41" (1041.4 mm) Test Leads, Thermocouple with Adapter, and Batteries
  • Drop Protection: 3.3' (1 m)
  • Overall Width: 3.02" (7.7 cm)
  • Current: 400A
  • Jaw Size: 1.12" (2.9 cm)
  • Frequency: 45 Hz to 400 Hz
  • Ohms (Resistance): 20MO
  • Voltage: 600V AC; 600V DC
  • Batteries: 3 x AAA
  • Overall Length: 8.7" (22.1 cm)
  • Weight: 10.1 oz (286 g)
  • Special Features: Features Low Battery Indicator
  • Type: Clamp Meter with AC and Type K Thermocouple Thermometer
  • Standard: CAT III 600V; CE Certified
  • Display: 2000 Count LCD
  • Temperature Range: -40° - 1832°F (-40° - 1000°C)
  • Style_Name: AC Current/Temperature
  • Replacement Parts: 69028, 69401, 69409, 69410,

Overview

UPC 09264469058
GTiN 00092644690587
Width 3.02 in
Type AC, Automatic Selection
Battery Type (3) AAA
Height 1.61 in
Weight 10.1 oz
Family Brand Name Klein Tools
Overall Length 8.7 in
Blade Dimensions 8-45/64 x 3-13/64 x 1-39/64 in
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Applications Measures AC Current
Voltage 600 Volt
Frequency 45 To 400 Hz
Current 400 A
