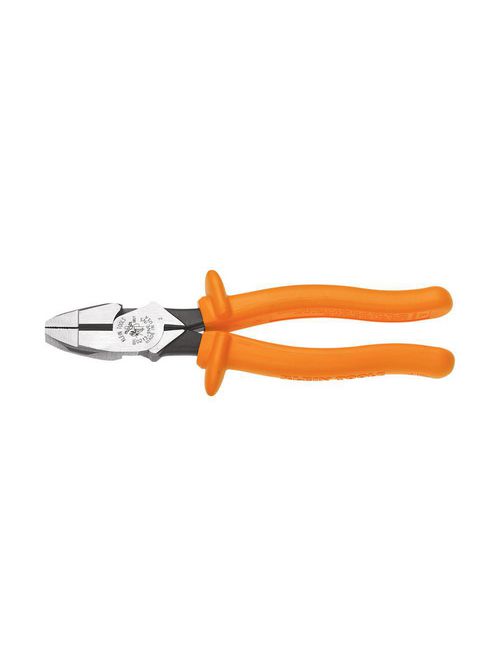

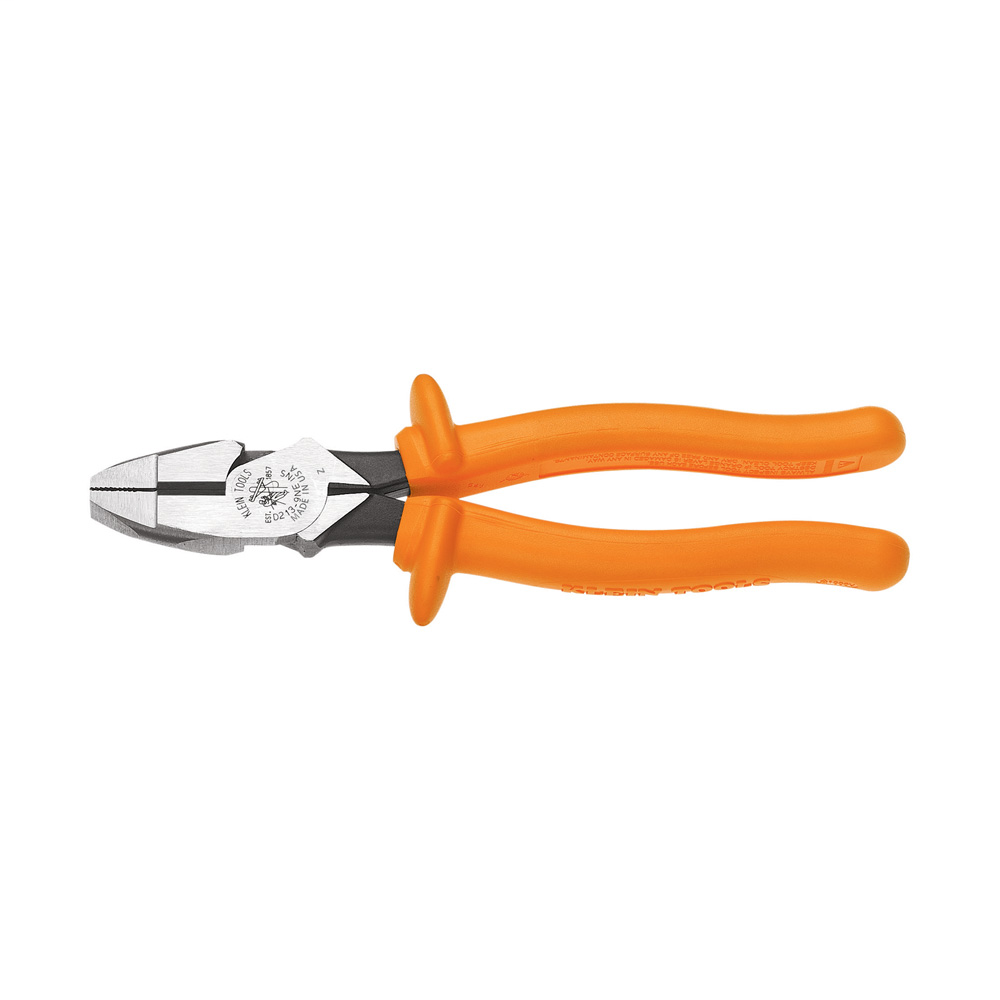

Klein D2000-9NE-INS 9 Inch Insulated High Leverage Side Cutting Pliers
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # D2000-9NE-INS
North Coast Part # 72802


  • Individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
  • Two layers of insulation provide protection against electric shock
  • Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
  • A flame retardant, impact-resistant, bright orange outer coating
  • High-leverage design provides 46-Percent greater cutting and gripping power than other plier designs
  • Cuts ACSR, screws, nails, and most hardened wire
  • Integral guards help prevent hand contact with conductive parts


  • Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
  • Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
  • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
  • Wear approved eye protection. Always inspect your tools before use.
  • Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
  • Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.


  • Overall Length: 9.68" (24.6 cm)
  • Cut Style: Side-Cutting
  • Weight: 1.3 lb (0.6 kg)
  • Type: Side Cutting Pliers
  • Material: Induction Hardened Steel
  • Sub Brand: 2000 SeriesĀ®
  • Knife Length: 0.781" (2 cm)
  • Application: ACSR, Screws, Nails and Most Hardened Wires
  • Handle Color: Orange
  • Jaw Capacity: 1.43" (3.6 cm)
  • Insulated: Yes
  • Handle Finish: 2-Layer
  • Special Features: Integral Guards Help Prevent Hand Contact With Conductive Parts
  • Jaw Width: 1.313" (3.3 cm)
  • Jaw Length: 1.594" (4.1 cm)
  • Joint Type: Hot-Riveted
  • Jaw Thickness: 0.625" (1.6 cm)
  • Standard: IEC 60900 and ASTM F1505
  • Nose Type: New England
  • Style_Name: Heavy Duty Cutting
  • Country of Origin: United States
  • Item Height (in): 0.6250
  • Item Width (in): 4.6250
  • Item Depth (in): 9.6250
  • Item Weight (lbs): 1.2500


UPC 09264470085
Item Long Description These Klein Tools 9-Inch Insulated Side-Cutting Pliers have jaws knurled with a cross-hatch pattern for excellent gripping. They are made of steel alloy for strength and performance. They also feature flame and impact retardant coating, as well as insulation to protect up to 1000 Volts.
GTiN 00092644700859
Color Orange
Type High-Leverage
Applications For Screws, Nails
Handle Type Dual Insulated
Handle Material High-Dielectric Plastic
Family Brand Name Klein Tools
Overall Length 9-5/8 in
Sub Brand 2000 Series
Material Induction-Hardened Steel
Weight 1.3 lb
Handle Color Orange
Handle Finish 2-Layer
Jaw Length 1.594 in
Jaw Thickness 0.625 in
Jaw Width 1.313 in
Insulated? Yes
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Knife Length 0.781 in
