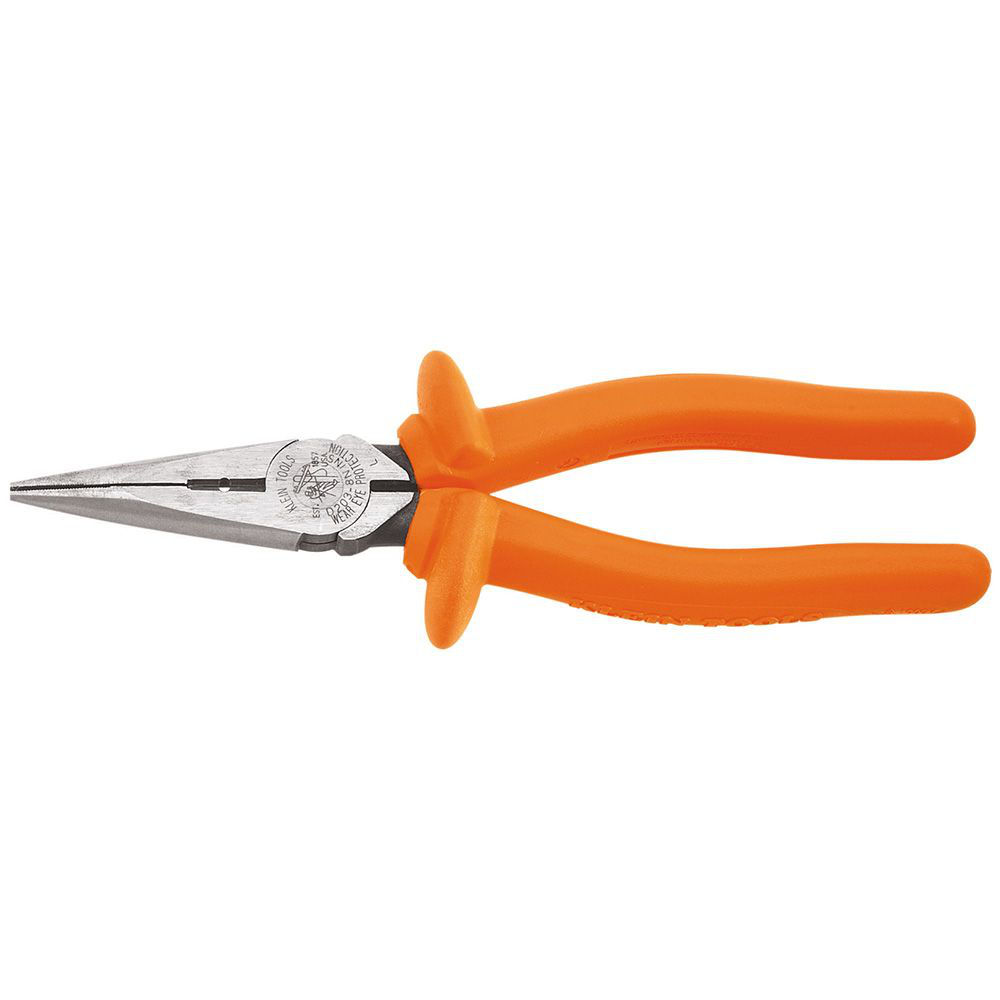

Klein Tools D203-8N-INS 2-5/16 x 1 x 1/2 Inch Orange Insulated Handle Side Cutting Heavy Duty Long Nose Pliers
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # D203-8N-INS
North Coast Part # 160290


  • Two layers of insulation provide protection against electric shock
  • Durable molded insulation meets or exceeds ASTM F1505-16 and IEC 60900:2018 standards for insulated tools
  • Flame retardant, impact-resistant, bright orange outer coating and clearly marked with the official 1000-volt rating symbol
  • Features a stripping hole for 12 AWG solid insulated wire and side-cutting knives at the hinge
  • Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
  • Heavier design for easier, more comfortable cutting
  • Extended handles provide added reach and leverage
  • Integral guards help prevent hand contact with conductive parts
  • Hot-riveted joint for smooth action and no handle wobble
  • Forged steel for maximum durability


  • Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
  • Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
  • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
  • Wear approved eye protection.
  • Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
  • Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.


  • Cutting Knives: Standard
  • Jaw Length: 2.313" (5.9 cm)
  • Knife Length: 0.625" (1.6 cm)
  • Jaw Thickness: 0.5" (1.3 cm)
  • Application: For Work Near Energized Sources
  • Special Features: Flame Retardant and Impact Resistant Handle
  • Point Diameter: 0.125" (3.2 mm)
  • Weight: 11.2 oz (318 g)
  • Joint Type: Hot-Riveted
  • Overall Length: 8.91" (22.6 cm)
  • Handle Color: Orange
  • Handle Length: 5.625" (14.3 cm)
  • Standard: IEC 60900 and ASTM F1505
  • Handle Finish: 2-Layer
  • Type: Long Nose
  • Cut Style: Side-Cutting and Skinning
  • Insulated: Yes
  • Material: Induction Hardened Steel
  • Jaw Width: 1" (2.5 cm)
  • Jaw Capacity: 2.36" (6 cm)
  • Size_Name: 8-Inch
  • Style_Name: Heavy-Duty/Skinning
  • Cuts: Yes
  • Strips: Yes
  • Country of Origin: United States
  • Item Height (in): 0.5000
  • Item Width (in): 4.7500
  • Item Depth (in): 8.8750
  • Item Weight (lbs): 0.7000



UPC 09264471033
GTiN 00092644710339
Family Brand Name Klein Tools
Material Induction-Hardened Steel
Applications For Work Near Energized Sources
Handle Type Dual Insulated
Handle Material High-Dielectric Plastic
Handle Color Orange
Jaw Length 2.313 in
Jaw Thickness 0.5 in
Jaw Width 1 in
Construction Heavy-Duty
Overall Length 8.91 in
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Type Long Nose
Weight 11.2 oz
Handle Length 5.625 in
Handle Finish 2-Layer
Knife Length 0.625 in
Insulated? Yes
Point Diameter 0.125 in
