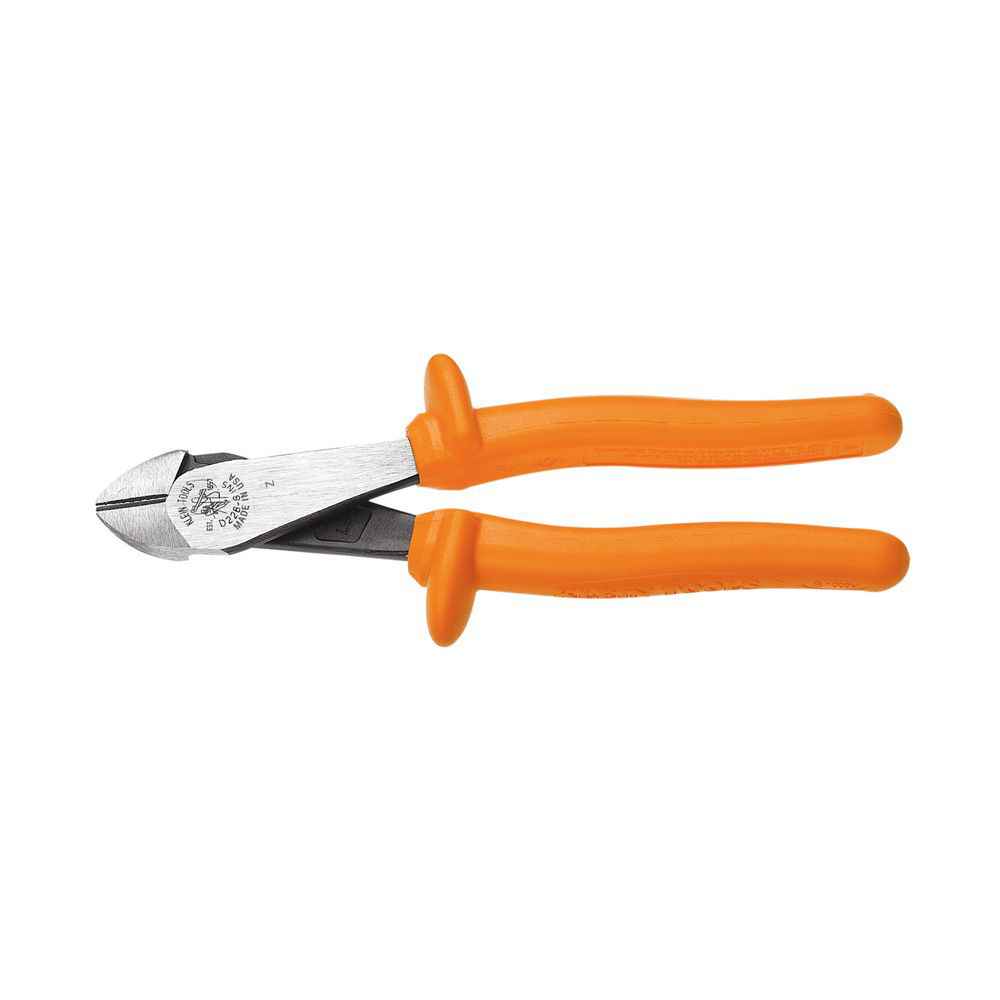

Klein Tools D228-8-INS 8 Inch Insulated High Leverage Diagonal Cutting Pliers
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # D228-8-INS
North Coast Part # 66915


  • Klein Tools Pliers are individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
  • Two layers of insulation provide protection against electric shock
  • Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
  • A flame retardant, impact-resistant, bright orange outer coating
  • High-leverage design. Rivet is closer to the cutting edge for 36-percent greater cutting power than other plier designs
  • Integral guards help prevent hand contact with conductive parts
  • Made of forged steel for maximum durability


  • Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
  • Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
  • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
  • Wear approved eye protection.
  • Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
  • Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.


  • Cutting Knives: Standard
  • Handle Finish: 2-Layer
  • Nose Type: Tapered
  • Special Features: Flame Retardant and Impact Resistant Handle
  • Cut Style: Diagonal-Cutting
  • Standard: IEC 60900 and ASTM F1505
  • Insulated: Yes
  • Jaw Width: 1.188" (3 cm)
  • Handle Length: 6" (15.2 cm)
  • Weight: 11.2 oz (318 g)
  • Handle Color: Orange
  • Overall Length: 8.25" (21 cm)
  • Jaw Length: 0.813" (2.1 cm)
  • Type: Diagonal Cutting Pliers
  • Jaw Thickness: 0.813" (2.1 cm)
  • Application: ACSR, Screws, Nails and Most Hardened Wire
  • Joint Type: Hot-Riveted
  • Material: Induction Hardened Steel
  • Configuration: Tapered Nose
  • Style_Name: Standard
  • Item Height (in): 0.4380
  • Item Width (in): 3.1000
  • Item Depth (in): 8.2500
  • Item Weight (lbs): 0.7000


UPC 09264472042
GTiN 00092644720420
Color Orange
Type High-Leverage, Standard
Material Induction-Hardened Steel
Applications For Screws, Nails
Weight 11.2 oz
Handle Type Dual Insulated
Handle Material High-Dielectric Plastic
Family Brand Name Klein Tools
Overall Length 8-1/4 in
Handle Color Orange
Jaw Length 0.813 in
Jaw Thickness 0.813 in
Jaw Width 1.188 in
Construction Standard
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Handle Length 6 in
Handle Finish 2-Layer
Insulated? Yes
