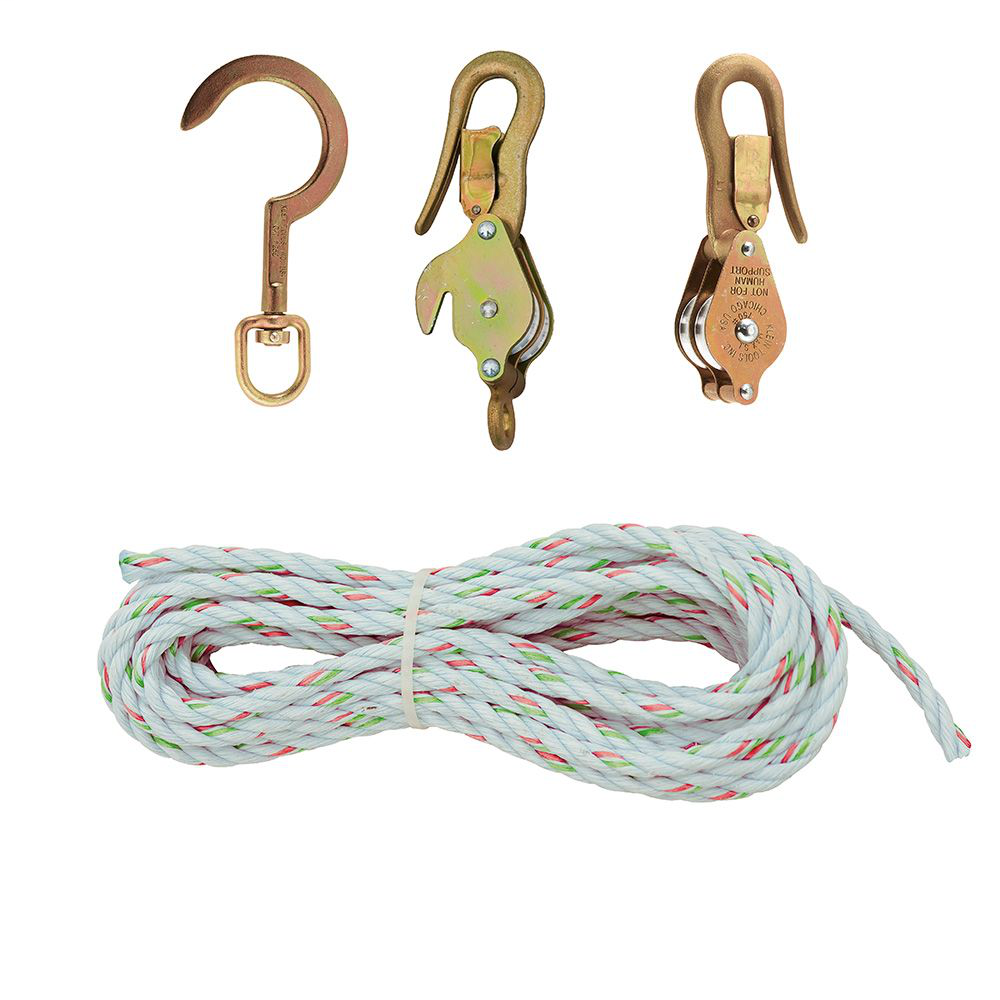

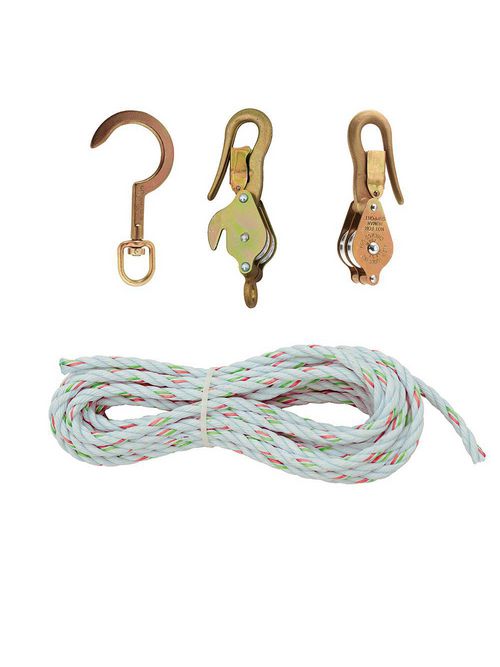

Klein Tools H1802-30S 3/8 Inch x 25 Foot 750 lb Galvanized Steel/Aluminum Alloy Rope Block and Tackle with Swivel Anchor Hook
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$136.85/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # H1802-30S
North Coast Part # 211420

Features

  • These are NOT occupational protective hooks. NOT for human support
  • Light, galvanized-steel shell blocks are fitted with snubbing hooks to hold the load
  • Sheaves are strong yet lightweight aluminum alloy with all-bronze bushings
  • Swivel hook Cat. No. 259
  • All Klein block and tackle use high-quality, 3/8-Inch (10 mm) diameter rope
  • 25 ft (7.62 m) rope length
  • Hooks fit under insulator and engage pin on cross arm
  • Maximum safe load is 750 lbs. (340 kg)

Warnings

  • These are NOT occupational protective devices. Do NOT use for human support.

Specifications

  • Maximum Safe Load: 750 lb (340 kg)
  • Hook Type: Guarded
  • Rope Material: Nylon
  • Overall Length: 12.33
  • Overall Width: 4.5
  • Rope Diameter: 3/8" (9.53 mm)
  • Overall Height: 4.41
  • Weight: 3.0 lb (1.4 kg)
  • H267 Block: Yes
  • Rope Length: 25'
  • Material: Galvanized-Steel Shell Blocks, Aluminum Alloy Bushings, Nylon Rope
  • H268 Block: Yes
  • 259 Swivel Anchor Hook: Yes
  • Replacement Parts: 258, 259,
  • Item Height (in): 4.4100
  • Item Width (in): 4.5000
  • Item Depth (in): 12.3300
  • Item Weight (lbs): 3.0000

Overview

UPC 09264448028
Item Long Description All Klein block and tackle use high-quality, 3/8-Inch (10 mm) diameter rope. Light, galvanized-steel shell blocks are fitted with snubbing hooks to hold the load. This package features two blocks with a swival Klein hook Cat. No. 259 with a maximum safe load of 750-pound (340 kg).
GTiN 00092644480287
Width 4.500 in
Type H268
Material Galvanized-Steel Shell Blocks, Aluminum Alloy Bushings, Nylon Rope
Height 4.410 in
Weight 3.000 in
Family Brand Name Klein Tools
Overall Length 12.33
Blade Dimensions 9.525 mm
Applications Available with standard snap hooks or guarded snap hooks
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Depth 12.330 in
