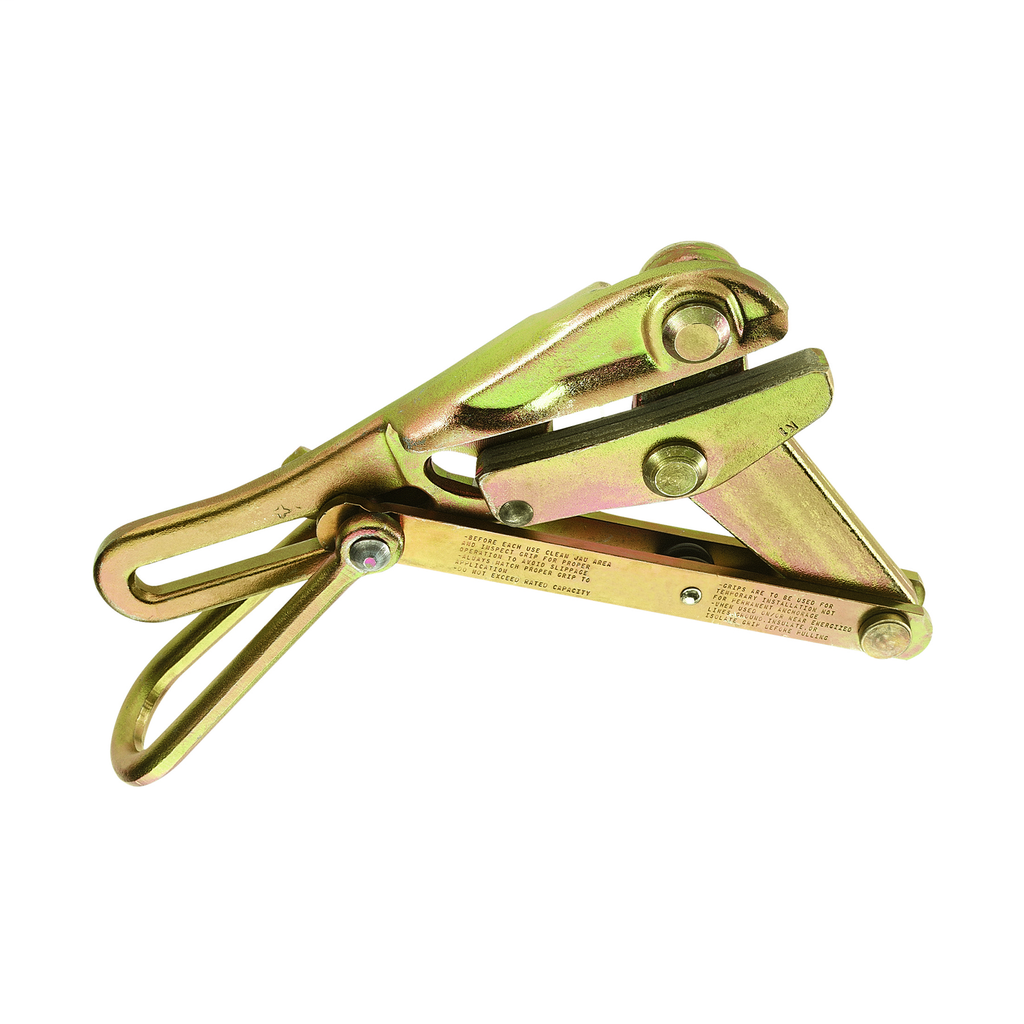

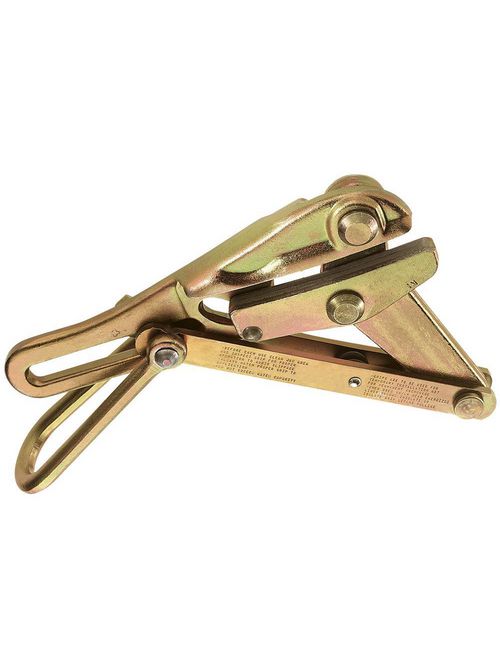

KLEIN S1684-74H Curved Jaw Grip, EH
$287.97/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # S1684-74H
North Coast Part # 604679

Features

  • When pulling EHS (extra-high-strength) galvanized-steel cable, the galvanizing has a tendency to coat the jaws of any grip, causing the cable to slip
  • To reduce the possibility of slippage and damage to the cable, the jaws of this grip are milled on a curve with a double ''V'' contour
  • Available with hot-line latch and spring
  • Manufactured in the United States to provide line workers with maximum strength and durability

Warnings

  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.

Specifications

  • Maximum Safe Load: 8000 lb (3629 kg)
  • Cable Type: Aircraft, EHS, Messenger, Guy Strand
  • Type: Chicago Grip
  • Jaw Length: 5" (12.7 cm)
  • Weight: 6.45 lb (2.93 kg)
  • Sub Brand: Chicago Grip
  • Overall Length: 9" (22.9 cm)
  • Special Features: Latch
  • Overall Width: 7.203" (18.3 cm)
  • Cable Diameter: 0.218" to 0.55" (5.54 to 13.97 mm)
  • Application: Extra High Strength Galvanized Steel Cable
  • Overall Height: 2.25" (5.7 cm)
  • Jaw Type: Double V, Milled Curved
  • Locking Handle: Y
  • Hot Latch: Y
  • Spring: Y
  • Swing Latch: N
  • Accessories: 25450,

Overview

UPC 09264447173
GTiN 00092644471735
Family Brand Name Klein Tools
Width 7.203 in
Size 0.218 - 0.55 in
Type Curved Jaw
Applications Extra High Strength Galvanized Steel Cable
Cable Type Messenger,Guy Strand,Aircraft,EHS
Height 2.25 in
Weight 6.45 lb
Jaw Length 5 in
Overall Length 9 in
Chain Cable Diameter 13.97 mm
Blade Dimensions 9 in L x 7-13/64 in W x 2-1/4 in H
Jaw Type Double V - Milled Curved
Sub Brand Chicago
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
