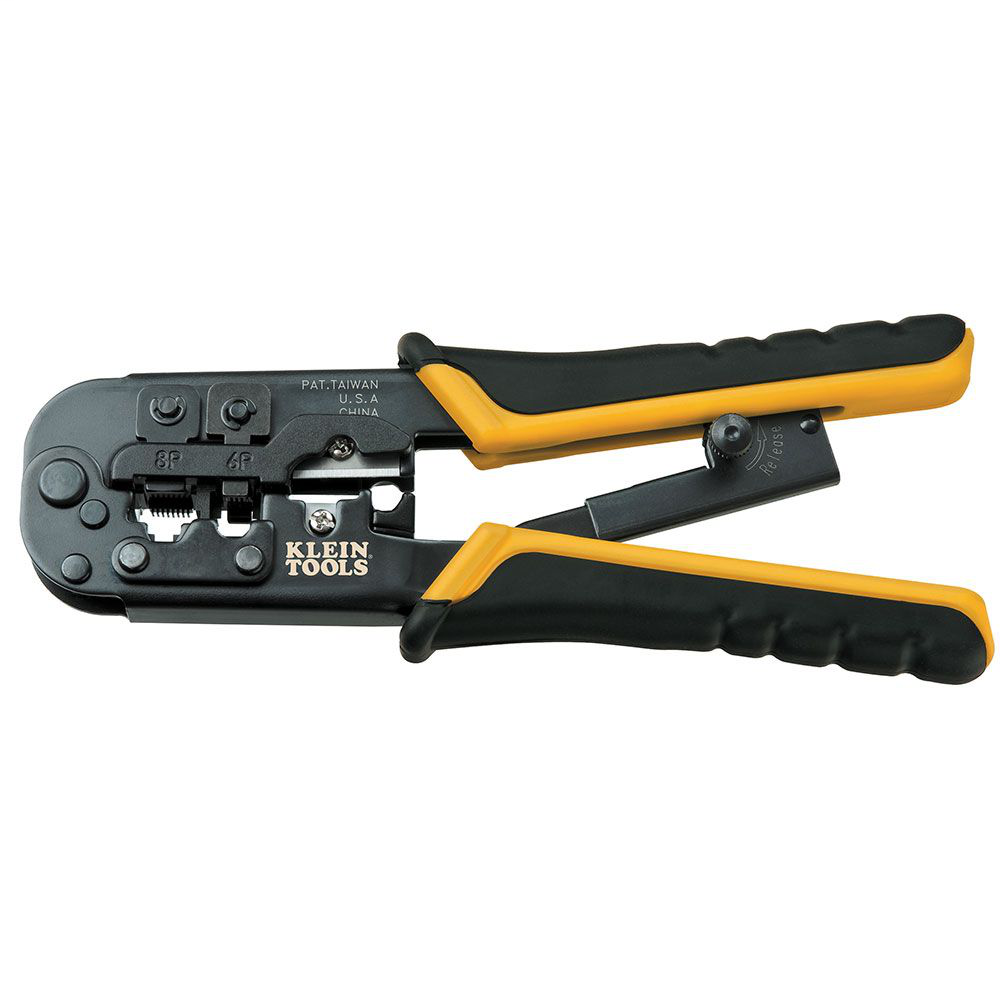

Klein Tools VDV226-011-SEN 7.5 Inch 28 to 22 AWG Yellow/Black Handle Steel Ratcheting Modular Crimper/Stripper
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$29.97/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # VDV226-011-SEN
North Coast Part # 601486

Features

  • Ratcheting crimper provides fast, reliable modular-crimp connector installation for voice and data applications
  • Cuts, strips, and crimps pair-conductor cables (round STP/UTP and flat-satin phone cable) all in one tool
  • Crimps 4, 6, and 8 position modular connectors (RJ22, RJ11/RJ12, and RJ45)
  • Steel body with black-oxide finish for excellent performance and durability
  • Crimping dies are precision ground from high-carbon steel
  • Designed for Western Electric (WE)/Stewart Stamping (SS)-type modular connectors
  • Ratchet safety-release and a blade-guard on cutting and stripping knives reduce risk of injury
  • Full-cycle ratchet mechanism prevents the release of the connector prior to full compression
  • Yellow and black grips enhance comfort, visibility, and allow quick identification
  • Three crimping dies (8-position, 6-position and 4-position)
  • Cable parameters: 28-22 AWG (.08 - .34 mm²) flat or round; solid or stranded telephone and data
  • Not for use with AMP® connectors
  • AMP® is a registered trademark of TYCO, Inc.
  • Replacement blade set available (Cat. No. VDV999-064)

Warnings

  • Always wear approved eye protection.
  • NOT insulated. Will NOT protect against electrical shock.
  • Never use on or near live electrical circuits.
  • Read carefully and understand instructions before using this tool.

Specifications

  • Position/Pair/Conductors: 4-Position, 1-Pair/2-Conductor, 4-Position, 2-Pair/4-Conductor 6-Position, 2-Pair/4-Conductor, 6-Position, 3-Pair/6-Conductor, 8-Position, 4-Pair/8-Conductor
  • Material: Steel with Black Oxide
  • Cuts & Strips: STP/UTP, Flat-Satin Phone Cable, and 22-28 AWG
  • Type: Crimper
  • Handle Color: Yellow/Black
  • Weight: 1.6 oz (45 g)
  • Application: Cable Connection
  • Overall Length: 7.5" (19.1 cm)
  • Connector Type: RJ45, RJ11, RJ12 Standard
  • Style_Name: Crimper, Data Ratcheting RJ45
  • Strips: Yes
  • Cuts: Yes
  • Crimps: Yes
  • Cable Type: CAT3, CAT5e, CAT6/6A
  • Replacement Parts: VDV999064,
  • Country of Origin: Taiwan
  • Item Height (in): 0.9000
  • Item Width (in): 4.0000
  • Item Depth (in): 7.5000
  • Item Weight (lbs): 0.1000

Categories

Overview

UPC 09264458014
GTiN 00092644580147
Finish Black Oxide
Type Ratcheting
Material Steel
Applications For Cutting, Stripping and Crimping Twisted Pair, Ethernet, STP/UTP and Flat Satin Phone Cable
Cable Type CAT3,CAT5e,CAT6/6A
Weight 1.6 oz
Wire Size 28-22 AWG
Handle Type Ergonomic Comfort Grip
Handle Color Yellow/Black
Family Brand Name Klein Tools
Overall Length 7-1/2 in
Used With 4, 6, 8 Position RJ11, RJ12, RJ22 and RJ45 Connector
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Connector Type RJ45, RJ11, RJ12 Standard
