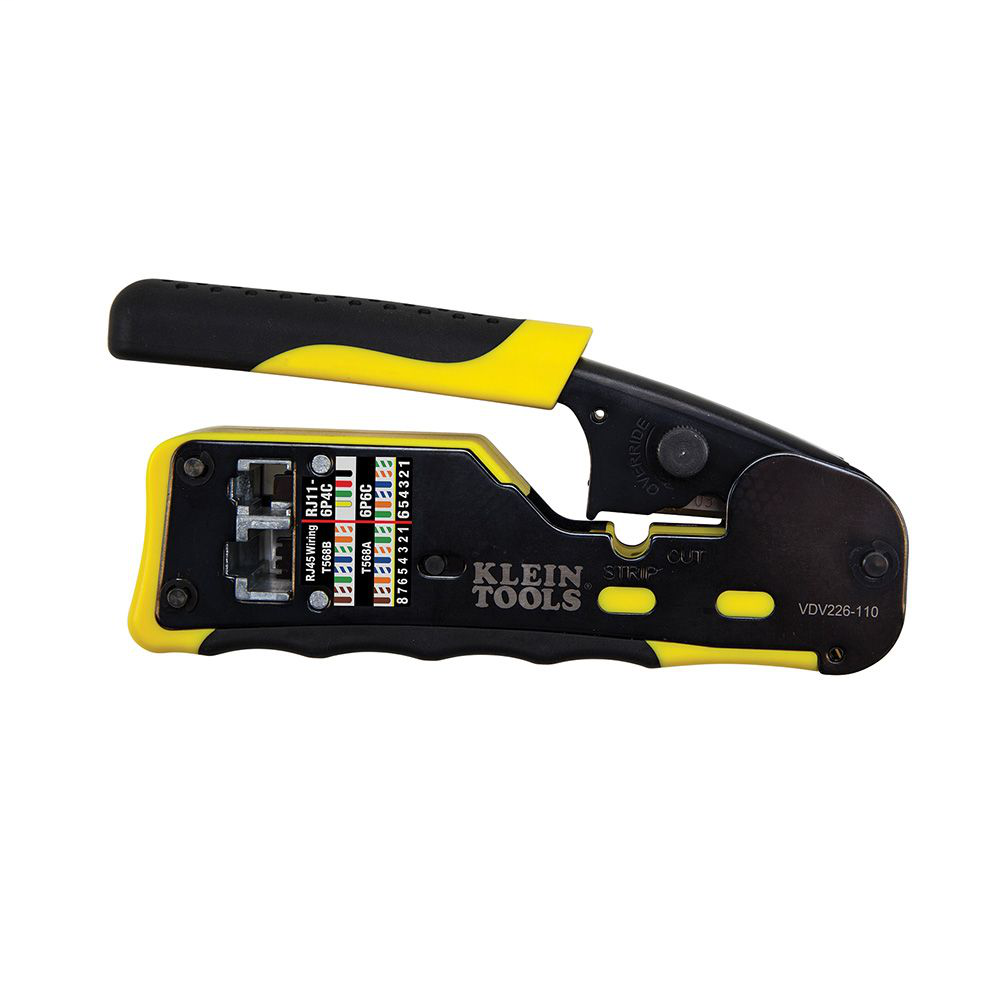

KLEIN VDV226-110 Pass-Thru Modular
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$44.97/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # VDV226-110
North Coast Part # 1550351

Features

  • Modular crimp-connector installation tool for voice and data applications with Pass-Thru RJ45 connector plug
  • Wire stripper, crimper, and cutter all-in-one tool for paired-conductor data cables
  • Trims flush to end face of connector eliminating unintended contact between conductors
  • Crimps and trims Klein Tools RJ45 Pass-Thru™ Connectors
  • Crimps 4, 6 and 8 position modular connectors (RJ11/RJ12 standard and RJ45 Klein Tools Pass-Thru™)
  • Full-cycle ratchet mechanism ensures complete connector termination
  • On-tool wiring guide helps minimize wiring errors
  • Cable parameters: 28-22 AWG flat or round; solid or stranded telephone and data
  • Rubber grip for added comfort
  • Ratcheting locking mechanism
  • Use with Klein Tools Pass-Thru™ Connectors
  • Not for use with standard (non Pass-Thru™) connectors
  • Replacement blade set available (VDV999-076)

Warnings

  • Always wear approved eye protection.
  • NOT insulated. Will NOT protect against electrical shock.
  • Never use on or near live electrical circuits.
  • Read carefully and understand instructions before using this tool.
  • Do NOT use the tool to pull the outer jacket off of the cable. Doing so may damage the conductors and the tool.

Specifications

  • Type: Crimper
  • Application: Cable Connection
  • Material: Steel with Black Oxide
  • Handle Color: Yellow/Black
  • Overall Length: 6.094" (15.5 cm)
  • Weight: 14.4 oz (408 g)
  • Connector Type: RJ45 Klein Tools Pass-Thru™, and RJ11, RJ12 Standard
  • Cuts & Strips: Paired Conductor Data Cables
  • Position/Pair/Conductors: 4-Position, 1-Pair/2-Conductor, 4-Position, 2-Pair/4-Conductor 6-Position, 2-Pair/4-Conductor, 6-Position, 3-Pair/6-Conductor, 8-Position, 4-Pair/8-Conductor
  • Cuts: Yes
  • Crimps: Yes
  • Strips: Yes
  • Cable Type: CAT3, CAT5e, CAT6/6A
  • Replacement Parts: VDV999076,
  • Accessories: VDV501851, VDV826702, VDV826703, VDV826763, VDV826728, VDV826729,
  • Country of Origin: Taiwan
  • Item Height (in): 2.4000
  • Item Width (in): 1.1100
  • Item Depth (in): 6.1000
  • Item Weight (lbs): 0.9000

Categories

Overview

UPC 09264469094
GTiN 00092644690945
Material Steel
Cable Type CAT3,CAT5e,CAT6/6A
Weight 14.4 oz
Family Brand Name Klein Tools
Overall Length 6.094 in
Finish Black Oxide
Type Crimper
Connector Type RJ11, RJ12 Standard and RJ45 Klein Tools Pass-Thru
Applications Cable Connection
Wire Size 28-22 AWG Paired
Cable Size CAT3, CAT5e, CAT6/6A
Handle Material Steel
Handle Color Yellow/Black
Used With 4-Position, 1-Pair/2-Conductor, 4-Position, 2-Pair/4-Conductor 6-Position, 2-Pair/4-Conductor, 6-Position, 3-Pair/6-Conductor, 8-Position, 4-Pair/8-Conductor, RJ11, RJ12 Standard and RJ45, CAT3, CAT5e, CAT6/6A Cables
Sub Brand Ratcheting Pass-Thru
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
