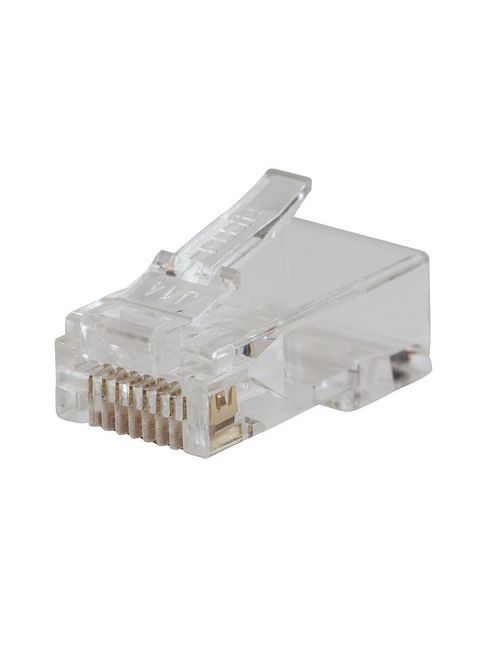

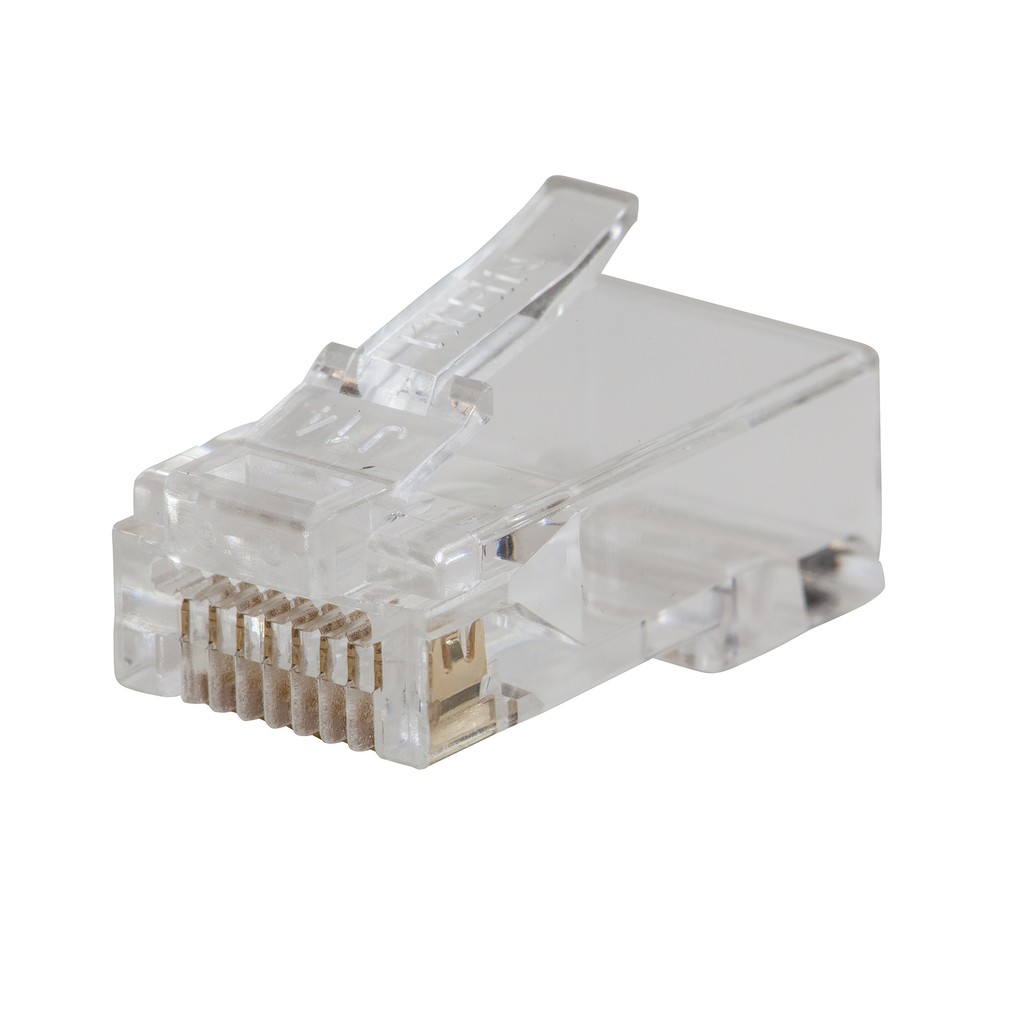

KLEIN VDV826-728 Pass-Thru Data Pl
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # VDV826-728
North Coast Part # 1550354


  • Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
  • CAT5e Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
  • 50 µ-inch gold plating on all contact surfaces
  • Category 5e performance per EIA/TIA B.2. FCC compliant, UL rated, RoHS compliant
  • For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110
  • 10-Pack
  • 8 position, 8 contact Pass Through style data plug for solid or stranded cable
  • Max diameter for CAT5E Pass-Thru™ Connectors is 0.04" (1.01 mm)


  • Do NOT use on energized circuits or cabling systems


  • Type: Modular
  • Package Quantity: 10
  • Overall Width: 0.094" (0.2 cm)
  • Overall Height: 0.453" (1.2 cm)
  • Connector Color: Clear
  • Solid Conductor Wire: Yes
  • Special Features: Pass-Thru Technology
  • Cable Type: CAT5e
  • Position & Contacts: 8P 8C
  • Stranded Conductor Wire: Yes
  • Material: PVC Plastic; Gold Plated Contacts
  • Connector Type: RJ45
  • Overall Length: 0.875" (2.2 cm)
  • Weight: 1 oz. (0.03 kg)
  • Application: Voice and Data
  • Style_Name: CAT5E
  • Size_Name: Quantity 10
  • Accessories: VDV110261,
  • Item Height (in): 0.0920
  • Item Width (in): 0.4590
  • Item Depth (in): 0.8850
  • Item Weight (lbs): 0.0060


UPC 09264469097
GTiN 00092644690976
Family Brand Name Klein Tools
Width 0.094 in
Type RJ45
Material Gold/PVC
Connector Type RJ45
Applications For Voice and Data
Cable Type Category 5e
Height 0.453 in
Weight 1 oz
Pkg Qty 10
Overall Length 0.875 in
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Color Clear
Blade Dimensions 7/8 in L x 3/32 in W x 29/64 in H
Number of Positions 8
Sub Brand Pass-Thru
