P&S 1205A REPLACEMENT DOOR SW + MET
$40.50/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 1205A
North Coast Part # 1005344

Features

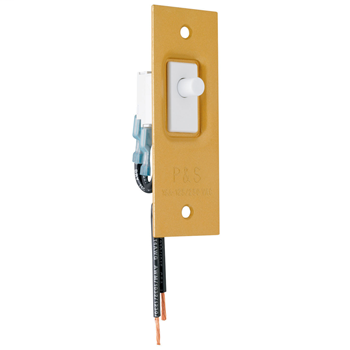

  • Equipped with wire leads. 1200 and 1201 complete with metal box and plate. Only 14 oz. pressure actuates switch. Back box cold rolled steel. Plate is steel with a bronze coating.

Specifications

General Info

  • Type: Canopy Switches & Locator Switches
  • Style: Decorator

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • cULus: Yes
  • UN SPSC: 39121507

Dimensions

  • Depth (US): 1.547"
  • Height (US): 4.031"
  • Width (US): 1.516"

Technical Information

  • Amps: 15A
  • Volts: 120/250VAC

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Video

Overview

UPC 78500712049
GTiN 00785007120493
Width 1.516 in
Operating Temperature Maximum continuous +60C, minimum -30C
Voltage 120 Volt
Type Canopy Switches & Locator Switches
Applications Residential/Commercial
Depth 1.547 in
Height 4.031 in
Country of Origin Mexico
Style Decorator
Family Brand Name Pass & Seymour
Actuator Push button
Contact Configuration N-O
Amperage 15 Amp
Contact Rating 15 Amp, 120/250 VAC
Number of Poles 1 Pole
Action SP
Operating Cycles 30k
UNSPSC 39121507
Sub Brand Pass & Seymour
