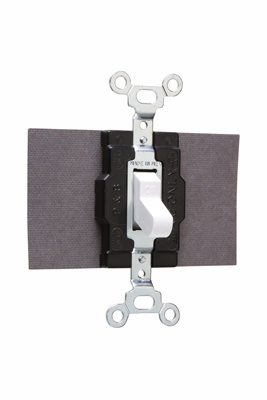

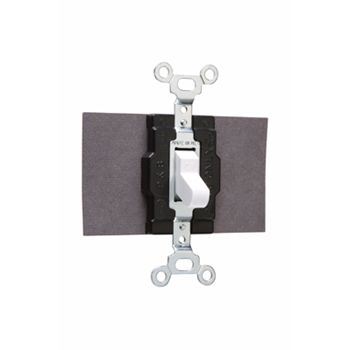

P&S 1222W SW MAN CONTRL 15A 120/277
$100.85/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 1222W
North Coast Part # 823133

Features

  • Oversize silver alloy contacts for long life and better heat dissipation.
  • Side wired terminals accept #14 - #10 AWG copper or copper-clad conductors.
  • Fiber terminal insulation barriers standard.
  • Can be mounted in standard device boxes or in NEMA 1 sheet steel enclosures.
  • Bodies, covers, and toggles molded of durable nylon.
  • Single Pole-Double Throw and Double Pole-Double Throw.
  • Locking Switches supplied with one 1498-NT key.
  • Normally open.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: White
  • Type: Maintained Contact
  • Number Of Poles: 2
  • Special Features: Two Circuit

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: Yes
  • UL Listing No: Yes
  • UN SPSC: 39121507

Dimensions

  • Depth (US): 1.469"
  • Height (US): 3.281"
  • Width (US): 1.5"
  • Weight: 0.28809

Technical Information

  • Amps: 15A
  • Volts: 120/277VAC
  • Volts (AC): 120/277

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Categories

Overview

UPC 78500712224
GTiN 00785007122244
Width 1.5 in
Size 3.3"
Color White
Voltage 120 Volt
Type Manual Control
Applications Industrial
Depth 1.469 in
Height 3.281 in
Grade Industrial
Country of Origin Mexico
Wattage 2 Watt
Family Brand Name Pass & Seymour
Certifications CSA,UL
Contact Configuration DPDT
Amperage 15 Amp
Blade Dimensions 38.1 mm W x 37 mm D x 83.3 mm H
Contact Rating 15 amp, 120/277vac
Number of Poles 2 Pole
Enclosure Box or NEMA 1 sheet steel
Used With Manual Controller
Sub Brand Pass & Seymour
