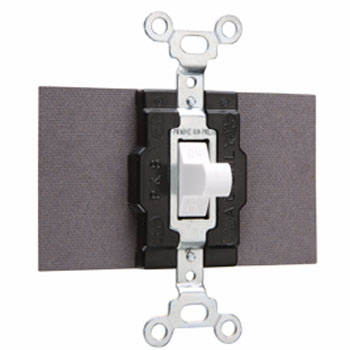

Pass & Seymour 1250-W 120/277 VAC 15 Amp 1-Pole 3-Position White Momentary Manual Controller Switch
$41.17/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 1250W
North Coast Part # 547842

Features

  • Oversize silver alloy contacts for long life and better heat dissipation.
  • Side wired terminals accept #14 - #10 AWG copper or copper-clad conductors.
  • Fiber terminal insulation barriers standard.
  • Can be mounted in standard device boxes or in NEMA 1 sheet steel enclosures.
  • Bodies, covers, and toggles molded of durable nylon.
  • Single Pole-Double Throw and Double Pole-Double Throw.
  • Locking Switches supplied with one 1498-NT key.
  • Normally open.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: White
  • Type: Momentary Contact
  • Number Of Poles: 1
  • Special Features: Three Position

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: Yes
  • UL Listing No: Yes
  • UN SPSC: 39121507

Dimensions

  • Depth (US): 1.469"
  • Height (US): 3.281"
  • Width (US): 1.5"
  • Weight: 0.24487

Technical Information

  • Amps: 15A
  • Volts: 120/277VAC
  • Volts (AC): 120/277

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500712514
GTiN 00785007125146
Width 1.5 in
Size 3.3"
Color White
Voltage 120 Volt
Type Manual Controller Switch
Applications Industrial use
Depth 1.469 in
Height 3.281 in
Grade Industrial
Country of Origin Mexico
Family Brand Name Pass & Seymour
Certifications CSA,UL
Actuator Toggle
Contact Configuration SPDT
Amperage 15 Amp
Blade Dimensions 38.1 mm W x 37 mm D x 83.3 mm H
Contact Rating 15Amp, 120/277V
Number of Poles 1 Pole
Action Momentary
Sub Brand Pass & Seymour
