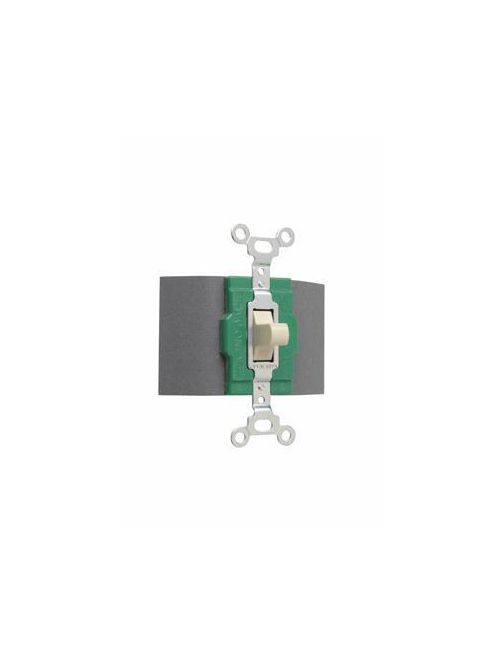

Pass & Seymour 1256 120/277 VAC 30 Amp 2-Pole 3-Position Brown Momentary Manual Controller Switch
$109.10/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 1256
North Coast Part # 671159

Features

  • Oversize silver alloy contacts for long life and better heat dissipation.
  • Side wired terminals accept #14 - #10 AWG copper or copper-clad conductors.
  • Fiber terminal insulation barriers standard.
  • Can be mounted in standard device boxes or in NEMA 1 sheet steel enclosures.
  • Bodies, covers, and toggles molded of durable nylon.
  • Single Pole-Double Throw and Double Pole-Double Throw.
  • Locking Switches supplied with one 1498-NT key.
  • Normally open.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: Brown
  • Type: Momentary Contact
  • Number Of Poles: 2
  • Special Features: Three Position

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: Yes
  • UL Listing No: Yes
  • UN SPSC: 39121507

Dimensions

  • Depth (US): 1.469"
  • Height (US): 3.281"
  • Width (US): 1.5"
  • Weight: 0.29481

Technical Information

  • Amps: 30A
  • Volts: 120/277VAC
  • Volts (AC): 120/277

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500712560
GTiN 00785007125603
Width 1.5 in
Size 3.3"
Color Brown
Voltage 120 Volt
Type Manual Controller Switch
Applications Industrial
Depth 1.469 in
Height 3.281 in
Country of Origin Mexico
Wattage 2 Watt
Family Brand Name Pass & Seymour
Certifications CSA,UL
Contact Configuration No
Amperage 30 Amp
Contact Rating 30amp 120/277vac
Number of Poles 2 Pole
Enclosure Box or NEMA 1 sheet steel
Sub Brand Pass & Seymour
