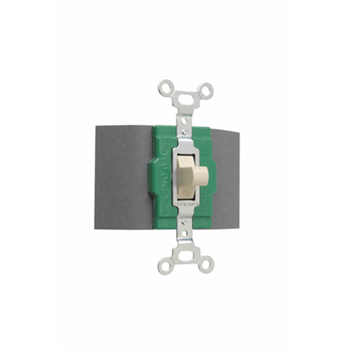

P&S 1256W SW MANUAL CTRL 30A 120/27
$109.10/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 1256W
North Coast Part # 671167

Features

  • Oversize silver alloy contacts for long life and better heat dissipation.
  • Side wired terminals accept #14 - #10 AWG copper or copper-clad conductors.
  • Fiber terminal insulation barriers standard.
  • Can be mounted in standard device boxes or in NEMA 1 sheet steel enclosures.
  • Bodies, covers, and toggles molded of durable nylon.
  • Single Pole-Double Throw and Double Pole-Double Throw.
  • Locking Switches supplied with one 1498-NT key.
  • Normally open.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: White
  • Type: Momentary Contact
  • Number Of Poles: 2
  • Special Features: Three Position

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: Yes
  • UL Listing No: Yes
  • UN SPSC: 39121507

Dimensions

  • Depth (US): 1.469"
  • Height (US): 3.281"
  • Width (US): 1.5"

Technical Information

  • Amps: 30A
  • Volts: 120/277VAC
  • Volts (AC): 120/277

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500723919
GTiN 00785007239195
Width 1.5 in
Size 4.37x2.43x2.43
Color White
Voltage 120 Volt
Type Switch Control
Applications Residential/Commercial
Depth 1.469 in
Height 3.281 in
Country of Origin Mexico
Family Brand Name Pass & Seymour
Certifications CSA,UL
Actuator Toggle
Amperage 30 Amp
Contact Rating 30amp, 120/277vac
Number of Poles 2 Pole
Action dpdt
Sub Brand Pass & Seymour
