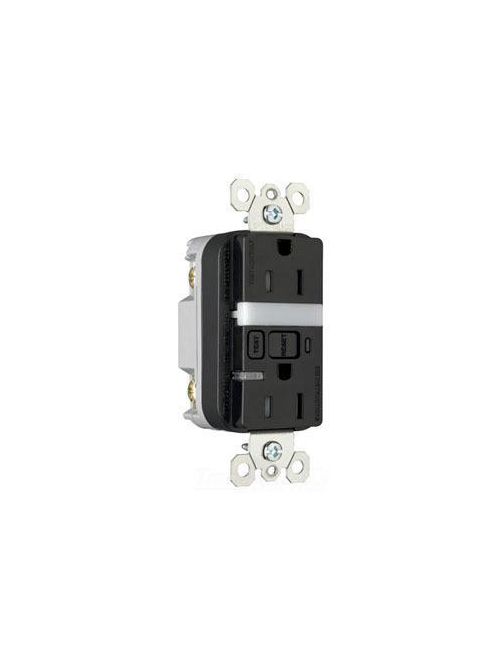

Pass & Seymour 1595-NTLTRBKCC4 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Black Thermoplastic Night Light/GFCI Receptacle
Product image thumbnail 0
Product image thumbnail 1
$43.96/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 1595-NTLTRBKCC4
North Coast Part # 1492391

Features & Benefits

  • Trip indicator light (red LED).
  • Button colors match the device face.
  • Extra-long strap.
  • Nightlight uses cooler LED illumination.
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Dual-direction test and reset buttons.
  • Energy-efficient LED has average 20-year life expectancy, eliminating bulb replacement.
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire.
  • Two receptacles.
  • For covering patents, see www.legrand.us/patents.
  • High-impact-resistant thermoplastic construction.
  • Meets National Electrical Code® Tamper-Resistant requirements.
  • FSUL Listed (Federal Specification WC596).
  • Sealed nightlight with high impact-resistant Lexan® lens prevents tampering.
  • Ground screw has a back wire clamp for easy installation.
  • Class A rated GFCI.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • 10kA short circuit wiring.
  • Photocell turns nightlight ON in dark, OFF in daylight.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles
  • LED Rated at 186 milliwatts 120V.
  • Supplied with matching TP26 nylon wall plate.
  • Two back wire holes per terminal.

Specifications

General Info

  • Color: Black
  • Style: Decorator
  • Available Colors: White, ivory, light almond, black, antique brass, dark bronze, nickel, titanium
  • Special Features: Tamper-resistant

Buy American Act Compliance

  • Buy American Act Status: No
  • Country of Origin: CHINA

Listing Agencies/Third Party Information

  • CSA Standard: C22.2 No. 42, 144
  • Federal Spec: Yes
  • UL Listing No: UL498
  • cULus: Yes
  • CUL Listing No: E42190
  • UL Standard: Yes
  • UN SPS C: 39121704
  • Fed Spec Number: WC596
  • cUL Standard: Yes
  • UL Listed: Yes

Technical Information

  • Volts: 125V
  • NEMA Configuration Number: 5-15R
  • NEMA Rating: Yes
  • Volts A C: 125
  • Amps: 15A

Dimensions

  • Width (U S): 1.72"
  • Depth (U S): 1.13"
  • Height (U S): 4.2"
  • Length (U S): 4.20"

Available Options

  • Tamper-Resistant 15A Night Light/GFCI Receptacle, Titanium
  • Tamper-Resistant 15A Night Light/GFCI Receptacle, Dark Bronze
  • Tamper-Resistant 15A Night Light/GFCI Receptacle, Antique Brass
  • Tamper-Resistant 15A Night Light/GFCI Receptacle, Light Almond
  • Tamper-Resistant 15A Night Light/GFCI Receptacle, White
  • Tamper-Resistant 15A Night Light/GFCI Receptacle, Ivory
  • Tamper-Resistant 15A Night Light/GFCI Receptacle, Black
  • Tamper-Resistant 15A Night Light/GFCI Receptacle, Nickel

Resources

Related Products

  • SWP26BK
  • SWP262BK
  • SWP264BK
  • SWP263BK

Overview

UPC 78500723969
Item Long Description From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. Our tamper-resistant nightlight/GFCI ensure safety and convenience. LED illumination has a 20+ year life expectancy, which means no bulbs to change.
GTiN 00785007239690
Length 4.20 in
Width 1.72 in
Color Black
Voltage 125 Volt
Depth 1.13 in
Height 4.2 in
Style Decorator
Family Brand Name Pass & Seymour
NEMA 5-15R
Amperage 15 Amp
