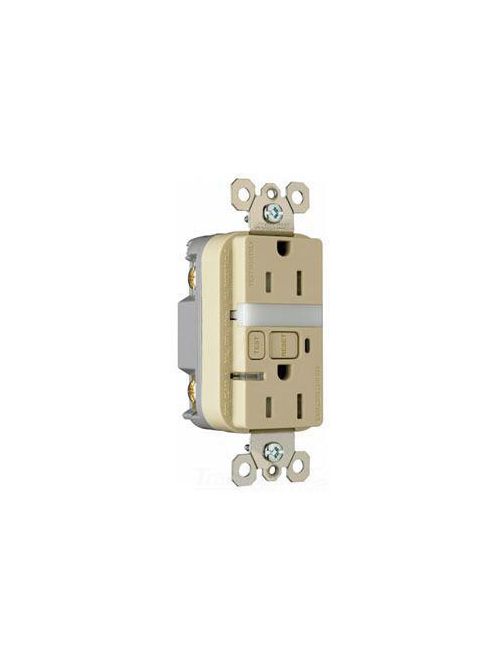

Pass & Seymour 1595-NTLTRICC4 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Ivory Thermoplastic Night Light/GFCI Receptacle
Product image thumbnail 0
Product image thumbnail 1
$43.02/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 1595-NTLTRICC4
North Coast Part # 1093545

Features & Benefits

  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire.
  • 10kA short circuit wiring.
  • Button colors match the device face.
  • FSUL Listed (Federal Specification WC596).
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles
  • Photocell turns nightlight ON in dark, OFF in daylight.
  • High-impact-resistant thermoplastic construction.
  • Meets National Electrical Code® Tamper-Resistant requirements.
  • Energy-efficient LED has average 20-year life expectancy, eliminating bulb replacement.
  • Sealed nightlight with high impact-resistant Lexan® lens prevents tampering.
  • Ground screw has a back wire clamp for easy installation.
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • Supplied with matching TP26 nylon wall plate.
  • LED Rated at 186 milliwatts 120V.
  • Nightlight uses cooler LED illumination.
  • Two back wire holes per terminal.
  • Dual-direction test and reset buttons.
  • For covering patents, see www.legrand.us/patents.
  • Two receptacles.
  • Class A rated GFCI.
  • Extra-long strap.
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Trip indicator light (red LED).
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.

Specifications

General Info

  • Special Features: Tamper-resistant
  • Style: Decorator
  • Color: Ivory
  • Available Colors: White, ivory, light almond, black, antique brass, dark bronze, nickel, titanium

Listing Agencies/Third Party Information

  • Fed Spec Number: WC596
  • UL Listing No: UL498
  • CSA Standard: C22.2 No. 42, 144
  • Federal Spec: Yes
  • UL Standard: Yes
  • cUL Standard: Yes
  • UN SPS C: 39121704
  • cULus: Yes
  • UL Listed: Yes
  • CUL Listing No: E42190

Buy American Act Compliance

  • Country of Origin: CHINA
  • Buy American Act Status: No

Technical Information

  • NEMA Configuration Number: 5-15R
  • Volts: 125V
  • NEMA Rating: Yes
  • Volts A C: 125
  • Amps: 15A

Dimensions

  • Height (U S): 4.2"
  • Length (U S): 4.20"
  • Width (U S): 1.72"
  • Depth (U S): 1.13"

Available Options

  • Tamper-Resistant 15A Night Light/GFCI Receptacle, Titanium
  • Tamper-Resistant 15A Night Light/GFCI Receptacle, White
  • Tamper-Resistant 15A Night Light/GFCI Receptacle, Nickel
  • Tamper-Resistant 15A Night Light/GFCI Receptacle, Antique Brass
  • Tamper-Resistant 15A Night Light/GFCI Receptacle, Black
  • Tamper-Resistant 15A Night Light/GFCI Receptacle, Light Almond
  • Tamper-Resistant 15A Night Light/GFCI Receptacle, Ivory
  • Tamper-Resistant 15A Night Light/GFCI Receptacle, Dark Bronze

Resources

Related Products

  • SWP26I
  • SWP263I
  • SWP262I
  • SWP264I

Overview

UPC 78500723968
GTiN 00785007239683
Length 4.20 in
Width 1.72 in
Color Ivory
Voltage 125 Volt
Depth 1.13 in
Height 4.2 in
Style Decorator
Family Brand Name Pass & Seymour
NEMA 5-15R
Amperage 15 Amp
