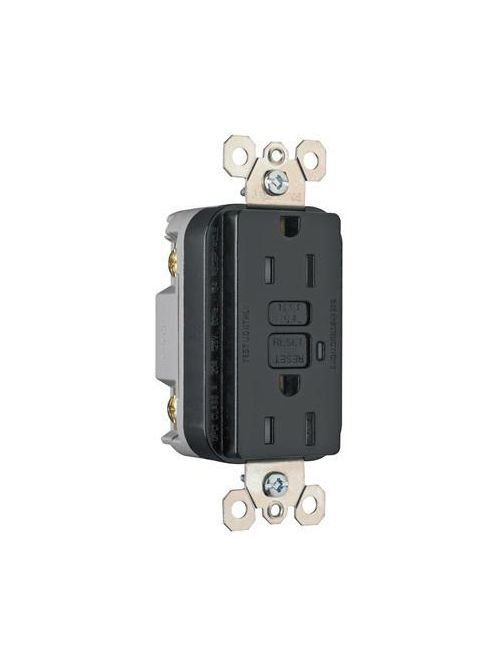

Pass & Seymour 1595-TRBK 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Black Thermoplastic Duplex Decorator GFCI Receptacle
Product image thumbnail 0
Product image thumbnail 1
$40.09/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 1595-TRBK
North Coast Part # 551010

Features & Benefits

  • Supplied with matching TP26 nylon wall plate.
  • 10kA short circuit rating.
  • Button colors match the device face.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Dual-direction test and reset buttons.
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • Class A rated GFCI.
  • Tri-drive screws.
  • FSUL Listed (Federal Specification WC596).
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • Meets 2008 National Electrical Code® Tamper-Resistant requirements.
  • Side or internal screw-pressure-plate back wire with #10 – #14 AWG solid or stranded copper wire.
  • Two back wire holes per terminal.
  • Trip indicator light (red LED).
  • Extra-long strap.
  • Ground screw has a back wire clamp for easy installation.
  • High-impact-resistant thermoplastic construction.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • 1/4" thinner than competitors' GFCIs; leaves more room for wires in the box.
  • For covering patents, see www.legrand.us/patents.

Specifications

General Info

  • Product Series: TradeMaster
  • Available Colors: White, ivory, light almond, brown, black, gray, antique brass, dark bronze, nickel, titanium
  • Color: Black
  • Special Features: Tamper Resistant
  • Style: Decorator

Buy American Act Compliance

  • Country of Origin: CHINA
  • Buy American Act Status: No

Dimensions

  • Length (U S): 4.20"
  • Width (U S): 1.72"
  • Depth (U S): 1.13"
  • Height (U S): 4.2"

Technical Information

  • NEMA Configuration Number: 5-15R
  • Amps: 15A
  • Grade Type: Specification
  • NEMA Rating: Yes
  • Volts: 125V
  • Volts A C: 125

Listing Agencies/Third Party Information

  • UL Listing No: UL498
  • CSA Standard: C22.2 No. 42, 144
  • UL Standard: Yes
  • Federal Spec: Yes
  • cUL Standard: Yes
  • cULus: Yes
  • Fed Spec Number: WC596
  • UN SPS C: 39121614

Available Options

  • TradeMaster®/Spec Grade Tamper-Resistant 15A Duplex GFCI, Black
  • TradeMaster®/Spec Grade Tamper-Resistant 15A Duplex GFCI, Gray
  • TradeMaster®/Spec Grade Tamper-Resistant 15A Duplex GFCI, Light Almond
  • TradeMaster®/Spec Grade Tamper-Resistant 15A Duplex GFCI, Brown
  • TradeMaster®/Spec Grade Tamper-Resistant 15A Duplex GFCI, White
  • TradeMaster®/Spec Grade Tamper-Resistant 15A Duplex GFCI, Ivory

Resources

Overview

UPC 78500724361
Length 4.20 in
Width 1.72 in
Color Black
Voltage 125 Volt
Product Series TradeMaster
Depth 1.13 in
Height 4.2 in
Grade Specification
Style Decorator
Family Brand Name Pass & Seymour
NEMA 5-15R
Amperage 15 Amp
