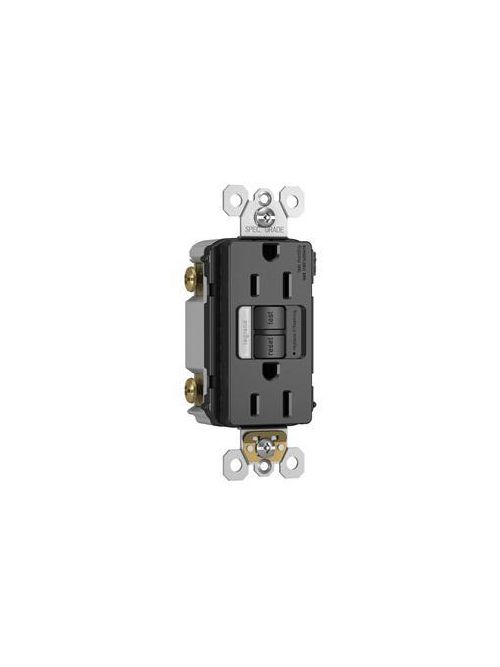

P&S 1597NTLTRBKCCD4 RADIANT 15A SEL
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$58.34/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 1597NTLTRBKCCD4
North Coast Part # 1492393

Features

  • Part of the radiant® collection
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects meeting National Electrical Code® Tamper-Resistant requirements
  • Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the trip indicator light (red LED) flashes to signal that the GFCI should be replaced
  • Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected
  • Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box
  • Sealed night light with high-impact-resistant Lexan® lens prevents tampering
  • Energy efficient LED has an average life expectancy of 20 years and photocell automatically turns light ON in dark and OFF in daylight
  • Feed-thru wiring configuration allows GFCI to protect downstream receptacles
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly
  • Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire and two back wire holes per terminal
  • Mounting screws are shipped captive in the device and wall plate for easier installation
  • Dual-direction test and reset button colors match the device face

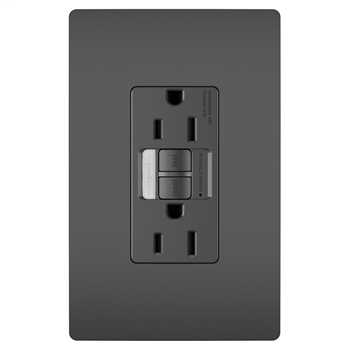

  • Supplied with matching TP wall plate (except 1597NTLTRNICC4, 1597NTLTRABCC4, and 1597NTLTRDBCC4)
  • 10kA short circuit rating
  • 20 Amp feed-thru capacity

Specifications

General Info

  • Color: Black
  • Style: GFCI Outlet

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • cULus: Yes
  • Federal Spec: Yes
  • UL Standard: UL498

Technical Information

  • Amps: 15A
  • NEMA Configuration Number: 5-15R
  • Volts: 125

Buy American Act Compliance

  • Country Of Origin: CHINA

Eco-Benefit Information

  • RoHS Compliant

Video

Overview

UPC 78500713565
GTiN 00785007135657
Color Black
Voltage 125 Volt
Country of Origin China
Style GFCI Outlet
Family Brand Name Pass & Seymour
NEMA 5-15R
Amperage 15 Amp
Sub Brand adorne
