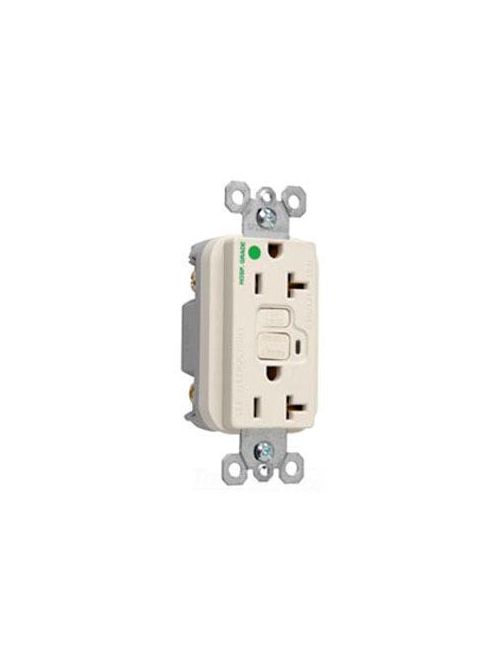

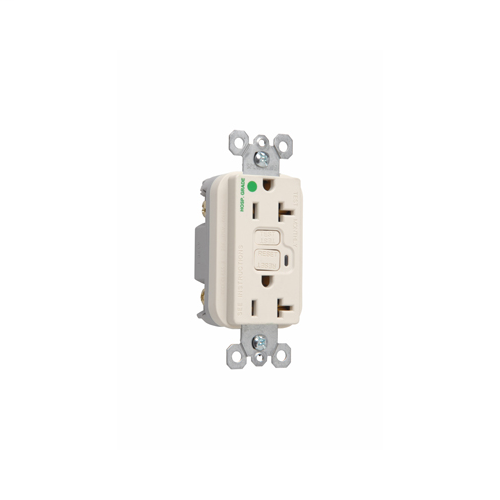

Pass & Seymour 2095-HGLA 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Light Almond Thermoplastic Duplex Decorator GFCI Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$39.15/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 2095-HGLA
North Coast Part # 822303

Features & Benefits

  • For covering patents, see www.legrand.us/patents.
  • High-impact-resistant thermoplastic construction for superior strength and durability.
  • 10kA short circuit rating.
  • The most durable GFCI available - exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • Patented SafeLock™ Protection for More Safety - shuts off power to the receptacle if there's a ground fault, if the GFCI is miswired, and even if the GFCI fails. This prevents the unsafe condition of power without protection.
  • Audible Alarm notifies end user of tripped GFCI. Provides Supplemental notification (along w/Trip Indicator Light - red LED). Alarm can be turned on/off.
  • Ground terminal back-wire clamp for fast installation.
  • Two back-wire holes per termination add wiring flexibility, eliminate pigtailing, and save box space.
  • Side or internal screw-pressure-plate back wire termination speeds installation; takes #14 – #10 AWG stranded or solid, copper or copperclad conductors.
  • Tamper-Resistant: Automatic shutter system prevents young children from inserting common objects such as hairpins or keys.

Specifications

General Info

  • Type: Duplex
  • Style: Decorator
  • Special Features: Tamper Resistant
  • Available Colors: White, ivory, light almond, red, brown, black, gray
  • Color: Light Almond

Buy American Act Compliance

  • Country of Origin: CHINA
  • Buy American Act Status: No

Listing Agencies/Third Party Information

  • CUL Listing No: E42190
  • UN SPS C: 39121614
  • CSA Standard: C22.2 No. 42, 144
  • Federal Spec: Yes
  • UL Standard: Yes
  • UL Listing No: UL498
  • cULus: Yes
  • Fed Spec Number: WC596
  • cUL Standard: Yes
  • UL Listed: Yes

Dimensions

  • Width (U S): 1.72"
  • Depth (U S): 0.98"
  • Height (U S): 4.2"
  • Length (U S): 4.20"

Technical Information

  • Volts: 125V
  • NEMA Configuration Number: 5-20R
  • Amps: 20A
  • Volts A C: 125
  • NEMA Rating: Yes
  • Grade Type: Hospital

Available Options

  • Hospital Grade 20A Duplex GFCI, White
  • Hospital Grade 20A Duplex GFCI, Brown
  • Hospital Grade 20A Duplex GFCI, Light Almond
  • Hospital Grade 20A Duplex GFCI, Black
  • Hospital Grade 20A Duplex GFCI, Red
  • Hospital Grade 20A Duplex GFCI, Gray
  • Hospital Grade 20A Duplex GFCI, Ivory

Resources

Overview

UPC 78500742414
Item Long Description From the innovator of the product category, comes a full range of Pass & SeymourGFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. Our hospital-grade GFCI meet rigorous requirements of Hospital Grade supplement of UL498.
GTiN 00785007424140
Length 4.20 in
Width 1.72 in
Color Light Almond
Voltage 125 Volt
Type Duplex
Depth 0.98 in
Height 4.2 in
Grade Hospital
Style Decorator
Family Brand Name Pass & Seymour
NEMA 5-20R
Amperage 20 Amp
