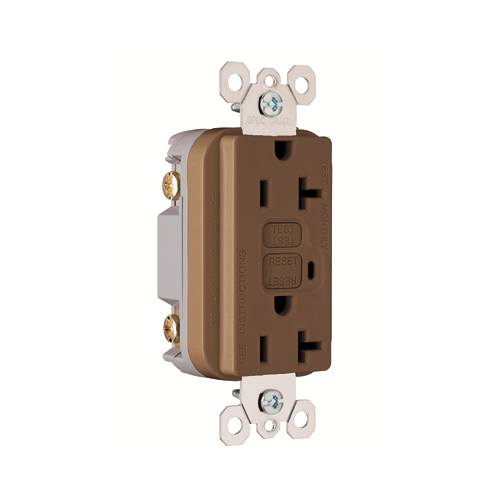

Pass & Seymour 2095 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Thermoplastic Brown Duplex GFCI Receptacle
$37.82/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 2095
North Coast Part # 544268

Features & Benefits

  • Extra-long strap.
  • 1/4" thinner than competitors' GFCIs; leaves more room for wires in the box.
  • Trip indicator light (red LED).
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Tri-drive screws.
  • High-impact-resistant thermoplastic construction.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • Class A rated GFCI.
  • 10kA short circuit rating.
  • Side or internal screw-pressure-plate back wire with #10 – #14 AWG solid or stranded copper wire.
  • For covering patents, see www.legrand.us/patents.
  • FSUL Listed (Federal Specification WC596).
  • GFCIs with Auto-Ground assure a positive ground to metal box.
  • Two back wire holes per terminal.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Button colors match the device face.
  • Dual-direction test and reset buttons.
  • Supplied with matching TP26 nylon wall plate.
  • Ground screw has a back wire clamp for easy installation.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.

Specifications

General Info

  • Color: Brown
  • Type: Duplex
  • Style: Decorator
  • Available Colors: White, ivory, light almond, red, brown, black, gray

Buy American Act Compliance

  • Buy American Act Status: No
  • Country of Origin: CHINA

Listing Agencies/Third Party Information

  • Federal Spec: Yes
  • UL Listing No: UL498
  • Fed Spec Number: WC596
  • UL Standard: Yes
  • CUL Listing No: E42190
  • cUL Standard: Yes
  • UL Listed: Yes
  • cULus: Yes
  • CSA Standard: C22.2 No. 42, 144
  • UN SPS C: 39121614

Dimensions

  • Width (U S): 1.72"
  • Length (U S): 4.20"
  • Depth (U S): 0.98"
  • Height (U S): 4.2"

Technical Information

  • Grade Type: Specification
  • Volts A C: 120
  • NEMA Configuration Number: 5-20R
  • Amps: 20A
  • Volts: 125V
  • NEMA Rating: Yes

Resources

Overview

UPC 78500742343
GTiN 00785007423433
Length 4.20 in
Width 1.72 in
Color Brown
Voltage 125 Volt
Type Duplex
Depth 0.98 in
Height 4.2 in
Grade Specification
Style Decorator
Family Brand Name Pass & Seymour
NEMA 5-20R
Amperage 20 Amp
