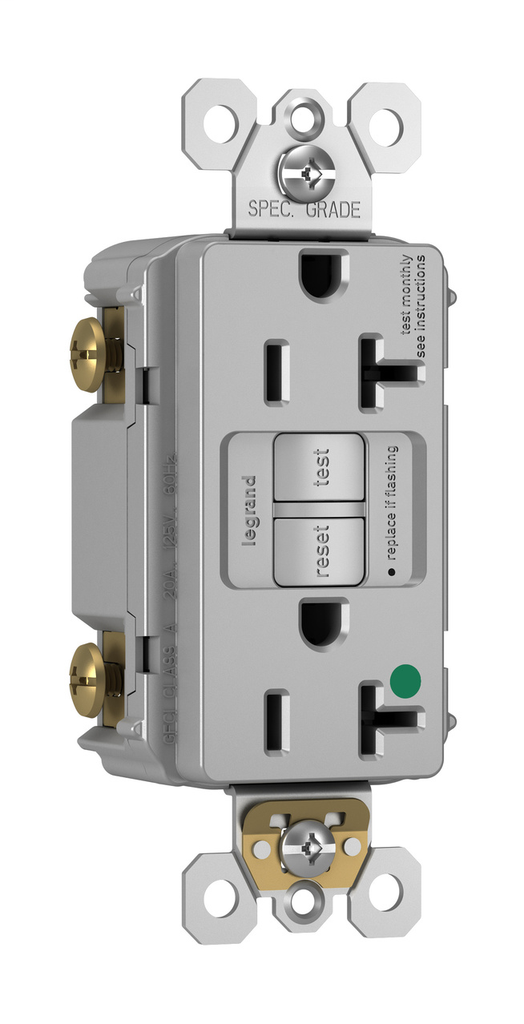

Pass & Seymour 2097-HGGRY 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Gray Thermoplastic Self-Test Duplex GFCI Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$52.34/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 2097HGGRY
North Coast Part # 1167139

Specifications

  • Country Of Origin: CN
  • Amperage: 20.0 A
  • Certifications: CULUS
  • Voltage: 125.0 V
  • Color: Gray
  • Frequency Rating: 60 Hz
  • Product Line: Pass & Seymour
  • Trip Range: 4 to 6 mA
  • Interrupt Rating: 4.0 A
  • Standard: cULus, UL Listed, FSUL
  • Number of Poles: Double Pole
  • Connection: Back and Side Wire
  • Application Sector: Residential/Commercial
  • Environmental Conditions: 95% Humidity, UL 94 V2
  • Special Features: Pass & Seymour invented the GFCI receptacle, and at Legrand, we're constantly reinventing it to ensure the highest level of safety possible. From the most advanced self-testing device to audible alarms to nightlight combos, we're continuously resetting the bar on GFCI innovation and safety.

Certifications

  • cULus Listed

Overview

UPC 78500703571
GTiN 00785007035711
Length 1.03 in
Width 1.73 in
Color Gray
Operating Temperature -35C to +66C
Voltage 125 Volt
Type Hospital Grade 20A Self Test Duplex GFCI
Material Thermoplastic
Applications Commercial, Residential Use
Height 4.2 in
Country of Origin China
Family Brand Name Pass & Seymour
NEMA 5-20R
Certifications CULUS
TC Connection Back and Side Wire
Actuator Control Circuit
Amperage 20 Amp
Environmental Conditions 95% Relative Humidity
Trip Type .025 Second Nominal
Number of Poles 2 Pole
Interrupt Rating 4 to 6 mA
Trip Range 4 to 6 mA
Sub Brand Pass & Seymour
Grade Hospital
Connection Type Back and Side Wired
Temperature Rating -35 to 66 C
Blade Dimensions 1.03 in L x 1.73 in W x 4.2 in H
