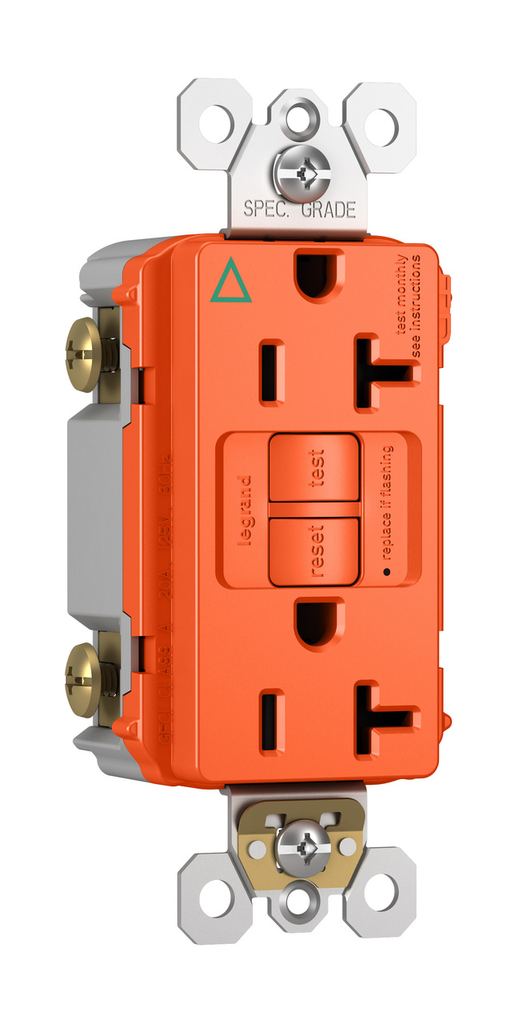

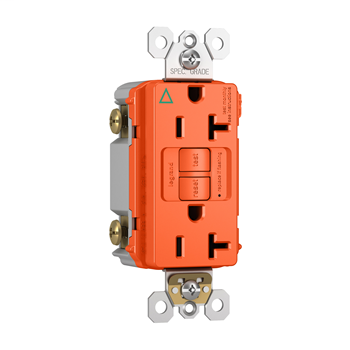

Pass & Seymour 2097-IGTRO 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Orange Thermoplastic Self-Test Duplex GFCI Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$64.91/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 2097IGTRO
North Coast Part # 1166588

Features

  • GFCI receptacle's grounding system is isolated from the building's grounding system.
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • Meets National Electrical CodeĀ® Tamper-Resistant requirements.
  • Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
  • Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box.
  • Auto-Ground clip assures a positive ground to metal box.
  • Meets 2015 UL requirements.
  • Feed-thru wiring configuration allows GFCI to protect downstream receptacles.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • Pre-stripped stranded wire lead for isolated ground termination.
  • Exceeds UL 943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • FSUL Listed (Federal Specification WC596).
  • Trip indicator light (red LED).
  • Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire.
  • Two back-wire holes per terminal.
  • Ground screw has back-wire clamp for easy installation.
  • 10kA short circuit rating.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • High-impact-resistant thermoplastic construction.
  • Extra-long strap.
  • Button colors match the device face.
  • Dual-direction test and reset buttons.
  • Class A rated GFCI.
  • Supplied with matching TP wall plate (except NI, AB, and DB models).
  • Supply Voltage: 125VAC, 60 Hz
  • Supply Voltage Range: 102-132 VAC
  • Trip Threshold: 5 +/- 1 m
  • Trip Time: 0.025 sec., nominal per UL Standard
  • 20 Amp feed-thru capacity

Specifications

General Info

  • Color: Orange

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listed: No
  • cULus: Yes
  • Federal Spec: Yes
  • UL Standard: UL498

Technical Information

  • Amps: 20A
  • NEMA Configuration Number: 5-20R
  • Volts: 125

Buy American Act Compliance

  • Country Of Origin: CHINA

Eco-Benefit Information

  • RoHS Compliant

Video

Overview

UPC 78500704869
GTiN 00785007048698
Length 1.03 in
Width 1.73 in
Color Orange
Operating Temperature -35C to +66C
Voltage 125 Volt
Type Isolated Ground Tamper-Resistant 20A Self-Test Duplex GFCI
Material Thermoplatic
Applications Commercial/Residential
Height 4.2 in
Country of Origin China
Family Brand Name Pass & Seymour
NEMA 5-20R
Certifications CULUS
TC Connection Back and Side Wire
Actuator Control Circuit
Amperage 20 Amp
Environmental Conditions 95 PCT
Trip Type .025 Second Nominal
Number of Poles 2 Pole
Interrupt Rating 4 to 6 mA
Trip Range 4 to 6 mA
Sub Brand Pass & Seymour
