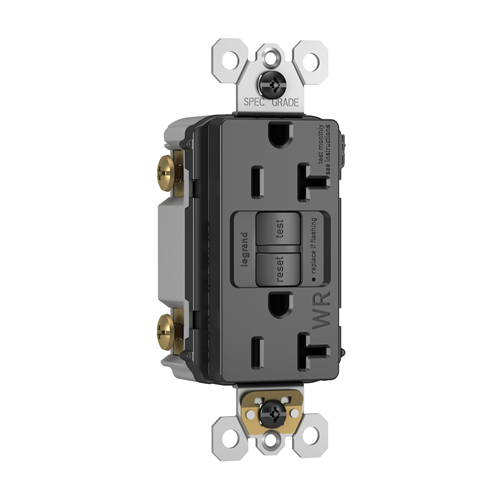

Pass & Seymour 2097-TRWRBK Spec-Grade Weather Resistant 20 Amp Black Self Test Duplex GFCI
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$28.59/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 2097TRWRBK
North Coast Part # 1165523

Features & Benefits

  • Feed-thru wiring configuration allows GFCI to protect downstream receptacles.
  • High-impact-resistant thermoplastic construction.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • Trip indicator light (red LED).
  • Supply Voltage: 125VAC, 60 Hz
  • Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
  • Exceeds UL 943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • Listed to the Weather-Resistant supplement of UL498 meeting demanding UL requirements including: Ultraviolet light exposure test; Cold impact test; Accelerated aging test; Stringent material requirements for current-carrying parts, wire binding screws and mounting straps to ensure superior corrosion resistance.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Class A rated GFCI.
  • Meets 2015 UL requirements.
  • 10kA short circuit rating.
  • Ground screw has back-wire clamp for easy installation.
  • Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire.
  • Weather-Resistant: Meets National Electrical CodeĀ® Weather-Resistant requirements.
  • Dual-direction test and reset buttons.
  • Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box.
  • Auto-Ground clip assures a positive ground to metal box.
  • Extra-long strap.
  • Two back-wire holes per terminal.
  • 20 Amp feed-thru capacity
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • Button colors match the device face.
  • Trip Time: 0.025 sec., nominal per UL Standard
  • Tamper-Resistant: Meets National Electrical CodeĀ® Tamper-Resistant requirements.
  • Trip Threshold: 5 +/- 1 m
  • Supplied with matching TP wall plate.
  • Supply Voltage Range: 102-132 VAC

Specifications

General Info

  • Color: Black

Technical Information

  • Amps: 20A
  • NEMA Configuration Number: 5-20R
  • Volts: 125

Listing Agencies/Third Party Information

  • UL Listed: Yes
  • Fed Spec Number: WC596
  • cULus: Yes
  • Federal Spec: Yes
  • CSA Listed: No
  • UL Standard: UL498

Buy American Act Compliance

  • Country of Origin: CHINA

Available Options

  • Spec-Grade Weather-Resistant 20A Self-Test Duplex GFCI, Black
  • Spec-Grade Weather-Resistant 20A Self-Test Duplex GFCI, White
  • Spec-Grade Weather-Resistant 20A Self-Test Duplex GFCI, Ivory
  • Spec-Grade Weather-Resistant 20A Self-Test Duplex GFCI, Light Almond
  • Spec-Grade Weather-Resistant 20A Self-Test Duplex GFCI, Brown
  • Spec-Grade Weather-Resistant 20A Self-Test Duplex GFCI, Gray

Resources

Overview

UPC 78500703636
Item Long Description Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
GTiN 00785007036367
Length 1.03 in
Width 1.73 in
Color Black
Operating Temperature -35C to +66C
Voltage 125 Volt
Type Specification Grade Weather-Resistant 20A Self-Test Duplex GFCI
Material Thermoplatic
Applications Commercial/Residential
Height 4.2 in
Country of Origin China
Family Brand Name Pass & Seymour
NEMA 5-20R
Certifications CULUS
TC Connection Back and Side Wire
Actuator Control Circuit
Amperage 20 Amp
Environmental Conditions 95 PCT
Trip Type .025 Second Nominal
Number of Poles 2 Pole
Interrupt Rating 4 to 6 mA
Trip Range 4 to 6 mA
Sub Brand Pass & Seymour
