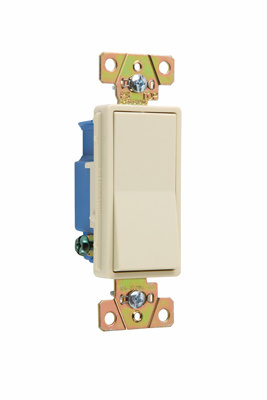

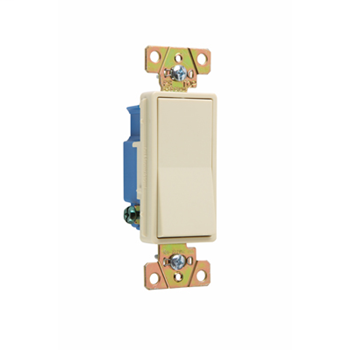

Pass & Seymour 2601-I 15 Amp 120/277 VAC 1-Pole Ivory Polycarbonate Screw Mounting Rocker Decorator Switch
Product image thumbnail 0
Product image thumbnail 1
$5.26/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 2601I
North Coast Part # 10878

Features

  • Impact-resistant polycarb back body and frame.
  • Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
  • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
  • Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
  • Terminals made of high conductivity brass and serrated for maximum wire gripping.
  • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
  • Integral auto-ground clip for positive ground to metal boxes.
  • Tri-drive ground, terminal, and mounting screws.
  • All terminal screws backed out, ready-to-install.
  • For covering patents, see

Specifications

  • Special Features: Impact resistant polycarb back body & frame, cushioned thermoplastic paddle , unique single rocking butterfly contact
  • Country Of Origin: MX
  • Certifications: UL,CSA
  • Standard: UL 20
  • Amperage: 15.0 A
  • Color: Ivory
  • Product Line: Pass & Seymour
  • Wattage: 1.0 W
  • Voltage: 120.0 V
  • Application Sector: Industrial
  • Contact Rating: 15amp, 120/277vac

Certifications

  • CSA Listed: 17446
  • UL Listed: 140597

Overview

UPC 78500753903
Item Long Description Single Pole, Back and Side Wire, Decorator Switch, 15 amps, 120/277 volts, White.
GTiN 00785007539035
Width 1.3 in
Size 4.25"
Color Ivory
Voltage 120 Volt
Type Switch
Applications For Industrial Use
Depth 1.06 in
Height 3.281 in
Country of Origin Mexico
Style Decorator
Wattage 1 Watt
Family Brand Name Pass & Seymour
Certifications CSA,UL
Amperage 15 Amp
Contact Rating 15amp, 120/277vac
Number of Poles 1 Pole
Sub Brand Pass & Seymour
Finish Gloss
Material Thermoplastic
Terminal Type Screw
Power Rating 1 W
TC Connection Back and Side Wired
Actuator Rocker/Button
Contact Configuration SPST
Blade Dimensions 4-1/4 in
