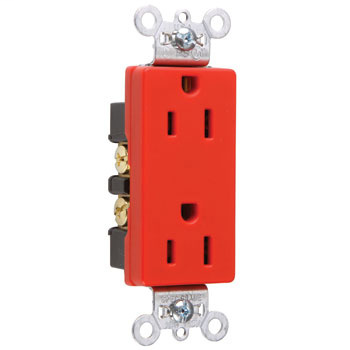

DECO DUP RECEP 15A 125V B+S WIRE RED
$14.88/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 26252RED
North Coast Part # 880276

Features

  • Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
  • One-piece, brass, triple-wipe power contacts for lasting retention.
  • Heavy-duty compact design for easier installation and long lasting performance.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire.
  • All devices fit standard #26 opening wall plate.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: Red
  • Type: Receptacles
  • Duty: Heavy Duty
  • Special Features: Back,Side Wire
  • Style: Decorator

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Standard: Yes
  • cUL Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121406

Dimensions

  • Depth (US): 0.833"
  • Height (US): 3.281"
  • Width (US): 1.322"

Technical Information

  • Amps: 15A
  • Volts: 125V
  • Volts (AC): 125
  • Capacity: Duplex
  • Grade Type: Specification

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500778456
GTiN 00785007784565
Width 1.322 in
Size 1.322 L x .833 W x 3.813 H In
Color Red
Voltage 125 Volt
Type Decorator, Heavy Duty
Material Nylon
Conductor Size 14 - 10 AWG
Applications Commercial
Mounting Type Wall
Depth 0.833 in
Height 3.281 in
Grade Specification
Country of Origin Mexico
Style Decorator
Wire Size 14-10 AWG
Capacity Duplex
Connection Type Back and Side Wired
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
TC Connection Back and side wire
Duty Rating Heavy Duty
Amperage 15 Amp
Dielectric Strength 2000 V
Blade Dimensions 1.322 in L x 0.833 in W x 3.813 in H
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
