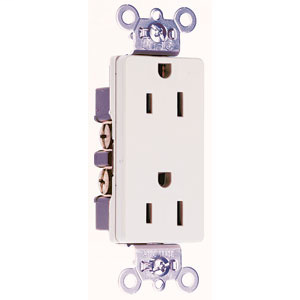

Pass & Seymour 26252-W 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R White Nylon Face Heavy Duty Duplex Decorator Receptacle
Product image thumbnail 0
Product image thumbnail 1
$15.17/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 26252W
North Coast Part # 821558

Features

  • Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
  • One-piece, brass, triple-wipe power contacts for lasting retention.
  • Heavy-duty compact design for easier installation and long lasting performance.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire.
  • All devices fit standard #26 opening wall plate.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Country Of Origin: MX
  • Amperage: 15 A
  • Standard: UL 498
  • Certifications: FEDSPEC,CULUS
  • NEMA Rating: 5-15R
  • Color: White
  • Voltage: 125.0 V
  • Product Line: Pass & Seymour
  • Wire Size: 4 AWG
  • Number of Wires: 3.0
  • Connection: Wire Ground
  • Number of Poles: Double Pole
  • Application Sector: Residential/Commercial
  • Special Features: Back & side wire, heavy duty compact design

Certifications

  • cULus Listed: 140596
  • Federal Spec Listed: WC596

Overview

UPC 78500778457
GTiN 00785007784572
Finish Gloss
Width 1.322 in
Size 3.8 in
Color White
Voltage 125 Volt
Type Decorator
Material Nylon
Conductor Size 4 AWG
Applications Residential/Commercial
Mounting Type Wall
Depth 0.833 in
Height 3.281 in
Grade Residential/Commercial
Country of Origin Mexico
Style Decorator
Wire Size 4 AWG
Capacity Duplex
Connection Type Wire Ground, Back and Side Wire
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
TC Connection Wire Ground
Duty Rating Heavy Duty
Amperage 15 Amp
Blade Dimensions 33.58 mm W x 21.16 mm D x 83.34 mm H
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
NEMA 5-15R
