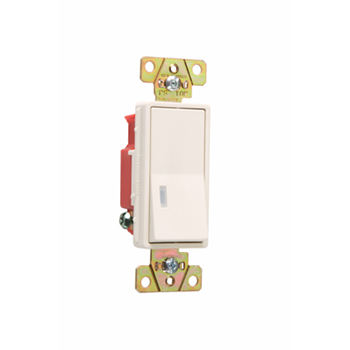

P&S 2625LA SW DEC 1P ILL 20A 120V G

Features

• Impact-resistant polycarb back body and frame.
• Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
• Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
• Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
• Terminals made of high conductivity brass and serrated for maximum wire gripping.
• Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
• Integral auto-ground clip for positive ground to metal boxes.
• Tri-drive ground, terminal, and mounting screws.
• All terminal screws backed out, ready-to-install.
• For covering patents, see www.legrand.us/patents.

Specifications

General Info

• Type: Illuminated
• Number Of Poles: 1
• Style: Decorator

Listing Agencies/Third Party Certifications

• RoHS: Yes
• CSA Listing Info: C22.2 111
• CSA Standard: Yes
• UL Listing No: 20
• UL Standard: Yes
• UN SPSC: 39121507

Dimensions

• Depth (US): 1.06"
• Height (US): 4.2"
• Width (US): 1.3"

Technical Information

• Amps: 20A
• Volts: 120VAC
• Volts (AC): 120

Buy American Act Compliance

• Country Of Origin: MEXICO
• Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

• RoHS Compliant
