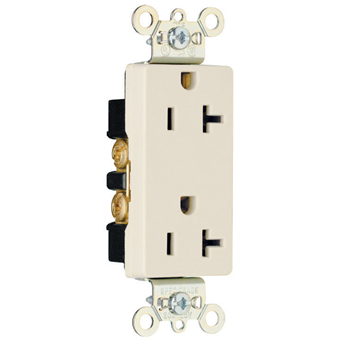

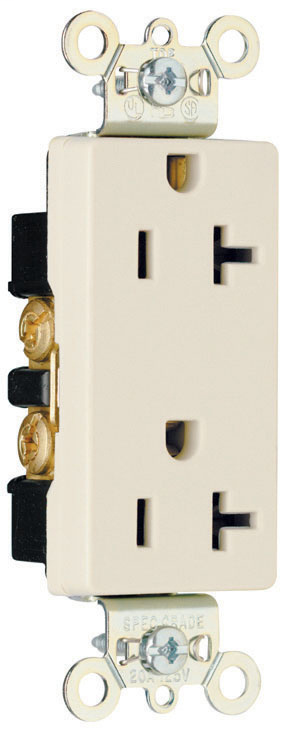

Pass & Seymour 26352-LA 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Light Almond Nylon Face Heavy Duty Duplex Decorator Receptacle

$15.19/ea

In Stock | 7 available at 1 location

Adding...

Already a Customer? Log in to view your pricing

Features

Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
One-piece, brass, triple-wipe power contacts for lasting retention.
Heavy-duty compact design for easier installation and long lasting performance.
Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
Impact-resistant nylon face.
Terminal compartments isolated from each other for positive conductor containment.
Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire.
All devices fit standard #26 opening wall plate.
Tri-drive terminal and mounting screws.
Auto-ground clip assures positive ground.
For covering patents, see www.legrand.us/patents.
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Country Of Origin: MX
Special Features: Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body. One-piece, brass, triple-wipe power contacts for lasting retention. Heavy-duty compact design for easier installation and long lasting performance. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face. Terminal compartments isolated from each other for positive conductor containment. Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire. All devices fit standard #26 opening wall plate. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.
Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications: CULUS,FEDSPEC
Amperage: 20 A
NEMA Rating: 5-20R
Product Line: Pass & Seymour
Voltage: 125.0 V
Standard: UL498, cUL CSA
Number of Wires: 3.0
Wire Size: #14 - #10
Application Sector: Commercial
Number of Poles: Double Pole
Connection: Back and side wire
Environmental Conditions: Flammability: UL94 V2
Dielectric Strength: Withstands 2000V minimum

UPC	78500778533
Item Long Description	Heavy-Duty Decorator Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Ivory
GTiN	00785007785333
Finish	Gloss
Width	1.322 in
Size	1.322 L x .833 W x 3.813 H In
Color	Light Almond
Voltage	125 Volt
Type	Decorator, Heavy Duty, Halogen-Free
Material	Nylon
Conductor Size	14 - 10 AWG
Applications	Commercial
Mounting Type	Wall, Flush, Screw
Depth	0.833 in
Height	3.281 in
Grade	Specification
Country of Origin	Mexico
Style	Decorator
Wire Size	14-10 AWG
Capacity	Duplex
Connection Type	Back and Side Wired
Family Brand Name	Pass & Seymour
Certifications	CULUS,FEDSPEC
TC Connection	Back and side wire
Duty Rating	Heavy Duty
Amperage	20 Amp
Dielectric Strength	2000 V
Blade Dimensions	1.322 in L x 0.833 in W x 3.813 in H
Number of Poles	2 Pole
Number of Wires	3
UNSPSC	39121406
Sub Brand	Pass & Seymour
NEMA	5-20R
