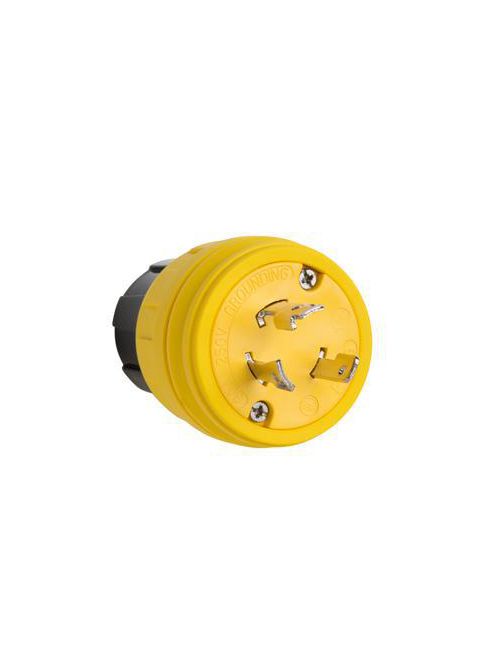

P&S 28W48 TURNLOK PLUG IP67 30A 250

$100.43/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather.
Nickel-Plated blades and contacts for long lasting, superior corrosion resistance.
Multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.
Devices resist high-pressure hose down of 1,500 psi.
Color coded sealing bushings provided for large range of cord diameters
Large ribs on body for a superior grip when mating.

Country Of Origin: US
Special Features: Rated watertight for 1,500 psi high-pressure hosedown, P&S Turnlok® watertight plugs & connectors feature rugged construction, multiple seals to ensure protection against the environment and ease of installation.
Amperage: 30 A
Phase: Single
Color: Yellow
Product Line: Pass & Seymour
NEMA Rating: L6-30P
Voltage: 250.0 V
Number of Wires: 3.0
Number of Poles: Double Pole
Standard: UL Listed, CSA Listed
Environmental Conditions: Moisture Resistance NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only) Flammability UL94V0 (boxes & wiring device interiors) Operating Temperature -40°C (without impact) to +60°C continuous UV resistance All exposed material s are UV stabilized
Wire Size: 14 AWG min - 10 AWG max

UPC	78500703323
GTiN	00785007033236
Length	3.11 in
Color	Yellow
Voltage	250 Volt
Type	Plug
Diameter	2.50 in
Material	Rubber
Cord Type	12/3 SJ, 14/3 S to 10/3 S, .475" min to .720" max
Applications	High-pressure washdowns. Particle build-up. Condensation. Corrosive substances. Food and beverage processing plants can be harsh, challenging environments. Fortunately, we have a full menu of electrical devices that keep things running smoothly while protecting people and equipment. IEC PIN & SLEEVE DEVICES Watertight Plugs & Connectors Thermoplastic elastomer body resists water, oils, lubricants and soaps while maintaining NEMA 4, 4X, 6, 6P, and IP65, 66, 67 ratings Ideal for washdown areas rated watertight for 1,500 PSI high-pressure hose down Nickel-plated blades and contacts for long-lasting, superior corrosion resistance Watertight compression cord grips and a multipoint sealing system between the plug and connector ensures protection from water and contaminants P
Country of Origin	USA
Wire Size	14-10 AWG
Family Brand Name	Pass & Seymour
NEMA	L6-30P
Buy American Compliant	Yes
Amperage	30 Amp
Environmental Conditions	-40 to 60 C
Number of Poles	2 Pole
Number of Wires	3.0
UNSPSC	39121403
Sub Brand	Pass & Seymour
Number of Phases	1 Phase
