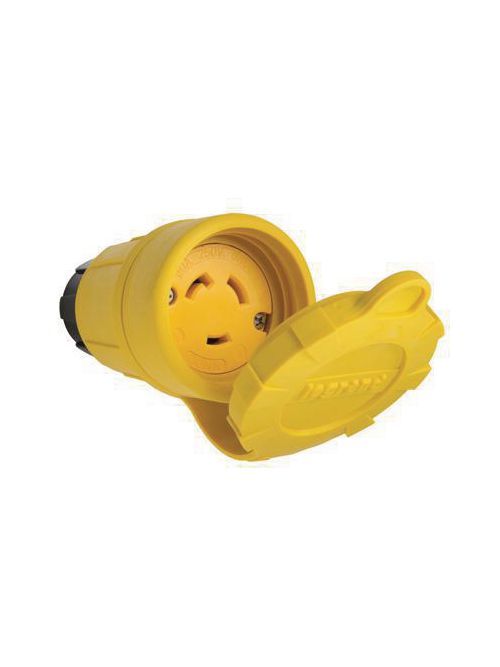

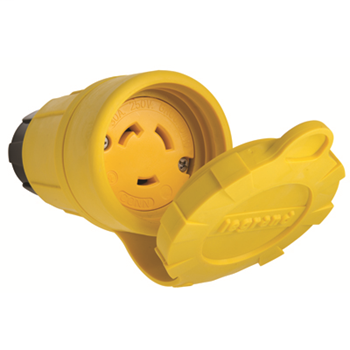

P&S 29W48 TURNLOK CONN IP67 30A 250
$129.82/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 29W48
North Coast Part # 1159846

Features

  • Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather.
  • Nickel-Plated blades and contacts for long lasting, superior corrosion resistance.
  • Multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.
  • Devices resist high-pressure hose down of 1,500 psi.
  • Color coded sealing bushings provided for large range of cord diameters
  • Large ribs on body for a superior grip when mating.

Specifications

General Info

  • Color: Yellow
  • Type: Connector
  • Features: Watertight
  • Number Of Poles: 2
  • Number Of Wires: 3
  • Special Features: Watertight, NEMA

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 42M
  • CSA Standard: Yes
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121403

Construction Information

  • Material 1: Rubber

Dimensions

  • Diameter (US): 2.76"
  • Length (US): 4.88"

Technical Information

  • Amps: 30A
  • Material: Rubber
  • NEMA Configuration Number: L6-30
  • NEMA Rating: 4X/6P
  • Volts: 250V
  • Volts (AC): 250V

Buy American Act Compliance

  • Country Of Origin: UNITED STATES OF AMERICA
  • Buy American Act Status: Buy American Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500703319
GTiN 00785007033199
Length 4.88 in
Color Yellow
Voltage 250 Volt
Type Connector
Diameter 2.76 in
Material Rubber
Cord Type 12/3 SJ, 14/3 S to 10/3 S, .475" min to .720" max
Applications High-pressure washdowns. Particle build-up. Condensation. Corrosive substances. Food and beverage processing plants can be harsh, challenging environments. Fortunately, we have a full menu of electrical devices that keep things running smoothly while protecting people and equipment. IEC PIN & SLEEVE DEVICES Watertight Plugs & Connectors Thermoplastic elastomer body resists water, oils, lubricants and soaps while maintaining NEMA 4, 4X, 6, 6P, and IP65, 66, 67 ratings Ideal for washdown areas rated watertight for 1,500 PSI high-pressure hose down Nickel-plated blades and contacts for long-lasting, superior corrosion resistance Watertight compression cord grips and a multipoint sealing system between the plug and connector ensures protection from water and contaminants P
Country of Origin USA
Wire Size 14-10 AWG
Family Brand Name Pass & Seymour
NEMA 4X/6P,L6-30
Buy American Compliant Yes
Amperage 30 Amp
Environmental Conditions -40 to 60 C
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121403
Sub Brand Pass & Seymour
