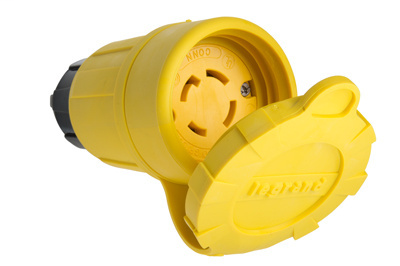

P&S 29W76 TL CONN IP67 30A 3PH 480V
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 29W76
North Coast Part # 1159854


  • Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather.
  • Nickel-Plated blades and contacts for long lasting, superior corrosion resistance.
  • Multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.
  • Devices resist high-pressure hose down of 1,500 psi.
  • Color coded sealing bushings provided for large range of cord diameters
  • Large ribs on body for a superior grip when mating.


  • Color: Yellow
  • Country Of Origin: US
  • Product Line: Pass & Seymour
  • Special Features: Rated watertight for 1,500 psi high-pressure hosedown, P&S Turnlok® watertight plugs & connectors feature rugged construction, multiple seals to ensure protection against the environment and ease of installation.
  • Amperage: 30 A
  • Phase: Three
  • NEMA Rating: L16-30R
  • Voltage: 480.0 V
  • Number of Wires: 4.0
  • Number of Poles: 3-Way
  • Standard: UL Listed, CSA Listed
  • Wire Size: 12 AWG min - 6 AWG max
  • Environmental Conditions: Moisture Resistance NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only) Flammability UL94V0 (boxes & wiring device interiors) Operating Temperature -40°C (without impact) to +60°C continuous UV resistance All exposed material s are UV stabilized


GTiN 00785007033007
Length 4.88 in
Color Yellow
Voltage 480 Volt
Type Connector
Diameter 2.76 in
Material Rubber
Cord Type 12/4 S to 8/4 S, 6/4 MSHA, .640" min to .930" max
Applications High-pressure washdowns. Particle build-up. Condensation. Corrosive substances. Food and beverage processing plants can be harsh, challenging environments. Fortunately, we have a full menu of electrical devices that keep things running smoothly while protecting people and equipment. IEC PIN & SLEEVE DEVICES Watertight Plugs & Connectors Thermoplastic elastomer body resists water, oils, lubricants and soaps while maintaining NEMA 4, 4X, 6, 6P, and IP65, 66, 67 ratings Ideal for washdown areas rated watertight for 1,500 PSI high-pressure hose down Nickel-plated blades and contacts for long-lasting, superior corrosion resistance Watertight compression cord grips and a multipoint sealing system between the plug and connector ensures protection from water and contaminants P
Country of Origin USA
Wire Size 12-6 AWG
Family Brand Name Pass & Seymour
NEMA L16-30R
Buy American Compliant Yes
Amperage 30 Amp
Environmental Conditions -40 to 60 C
Number of Poles 3 Pole
Number of Wires 4.0
UNSPSC 39121403
Sub Brand Pass & Seymour
Product UPC 78500703300
Number of Phases 3 Phase
