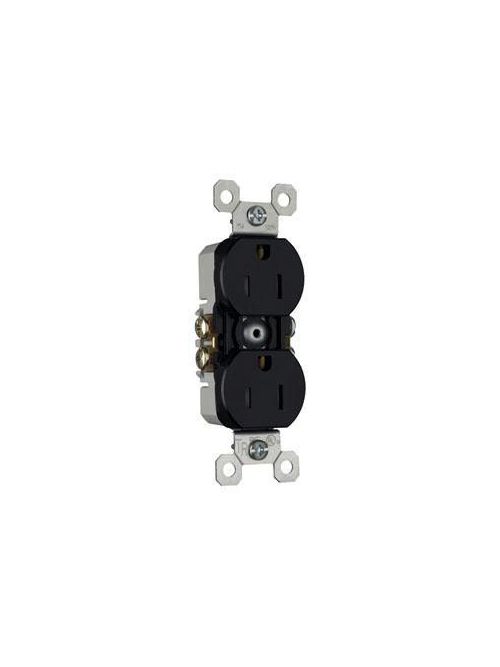

Pass & Seymour 3232-TRBK 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Black Thermoplastic Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$2.94/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 3232-TRBK
North Coast Part # 550397

Features

  • Meets 2008 National Electrical Code Tamper-Resistant requirements.
  • Protects children: patented shutter system—now with black "invisi-shutters" that disappear for an invisible effect—helps prevent improper insertion of foreign objects.
  • High-impact resistant thermoplastic construction.
  • Extra-long strap.
  • Quickloop wire looping aid.
  • Long-term blade retention.
  • Longer tri-drive screws for easier 12 AWG looping.
  • Extra-large circuit break-off tabs.
  • Side-access push wire release.
  • Ultrasonic welding of face to back body.
  • Side wire accepts #12 – #14 AWG solid wire.
  • Push wire accepts #14 AWG solid only.
  • Superior protection than traditional outlet caps or protection plates.
  • Low profile face.
  • Traditional contoured face (3232 models).
  • Self-grounding models provide automatic ground clip.

Specifications

General Info

  • Color: Black
  • Type: Tamper Resistant Duplex
  • Number Of Poles: 2
  • Number Of Wires: 3

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 No.42
  • CSA Standard: Yes
  • cULus: Yes
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121406

Dimensions

  • Depth (US): 1.0"
  • Height (US): 3.31"
  • Width (US): 1.320"

Technical Information

  • Amps: 15A
  • NEMA Configuration Number: 5-15R
  • NEMA Rating: Yes
  • Volts: 125
  • Volts (AC): 125

Buy American Act Compliance

  • Country Of Origin: CHINA
  • Buy American Act Status: No

Eco-Benefit Information

  • RoHS Compliant
  • LEED Contribution: Yes

Video

Overview

UPC 78500724030
GTiN 00785007240306
Finish Gloss
Width 1.320 in
Color Black
Voltage 125 Volt
Type Tamper-Resistant
Material Thermoplastic
Mounting Type Flush
Depth 1.0 in
Height 3.31 in
Country of Origin China
Family Brand Name Pass & Seymour
NEMA 5-15R
Certifications UL,CULUS
Buy American Compliant No
Amperage 15 Amp
Blade Dimensions 33.53 mm W x 25.4 mm D x 84.07 mm H
Number of Poles 2 Pole
Number of Wires 3
