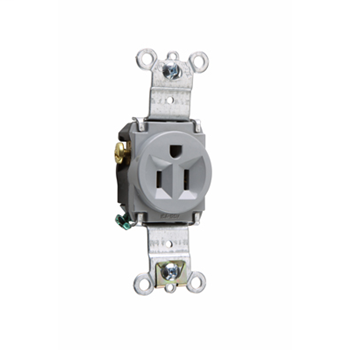

Pass & Seymour 5261-GRY 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Gray Nylon Face Single Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$19.56/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 5261GRY
North Coast Part # 663920

Features

  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • One-piece brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Country Of Origin: MX
  • Special Features: Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly. One-piece brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face and thermoplastic back body. Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire. Terminal compartments isolated from each other for positive conductor containment. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.
  • Certifications: CUL,FEDSPEC
  • Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Color: Gray
  • Amperage: 15 A
  • Product Line: Pass & Seymour
  • NEMA Rating: 5-15R
  • Voltage: 125.0 V
  • Number of Wires: 3.0
  • Wire Size: #14 - #10
  • Application Sector: Commercial
  • Number of Poles: Double Pole
  • Standard: UL498, CSA C22.2 No. 42
  • Connection: Back and side wire
  • Environmental Conditions: Flammability: UL94 V2
  • Dielectric Strength: Withstands 2000V minimum

Certifications

  • cUL Listed: 140596
  • Federal Spec Listed: WC596

Overview

UPC 78500752613
Item Long Description Heavy-Duty Spec Grade Single Receptacle Back & Side Wire 15amp 125volt Light Almond
GTiN 00785007526134
Width 1.32 in
Size 1.32 L x 1.093 W x 3.68 H In
Color Gray
Voltage 125 Volt
Type Single Receptacles
Material Nylon
Applications Commercial
Depth 1.093 in
Height 3.28 in
Grade Federal Specification
Country of Origin Mexico
Wire Size 14-10 AWG
Capacity Single
Family Brand Name Pass & Seymour
Certifications CUL,FEDSPEC
TC Connection Back and side wire
Duty Rating Heavy Duty
Amperage 15 Amp
Dielectric Strength Withstands 2000V minimum
Number of Poles 2 Pole
Number of Wires 3.0
UNSPSC 39121406
Sub Brand Pass & Seymour
NEMA 5-15R
