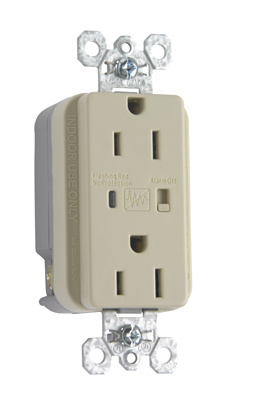

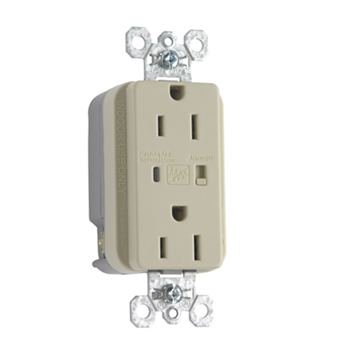

Pass & Seymour 5262-ISP 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Ivory Nylon Surge Protective Duplex Receptacle
$104.67/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 5262ISP
North Coast Part # 755877

Features

  • Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
  • LED Indication: Steady green = protected, Flashing re = not protected, OFF = no power to unit
  • Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
  • Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
  • Impact-resistant thermoplastic exterior resists impacts and scrapes.
  • Triple-wipe, copper-alloy contacts for superior, more dependable connection.
  • External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw.
  • Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond.
  • For covering patents, see www.legrand.us/patents.

Specifications

General Info

  • Color: Ivory
  • Type: Duplex
  • Duty: Extra Heavy Duty
  • Special Features: Audible Alarm with LED Monitor, Isolated Ground

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: No
  • CUL Listing No: No
  • cULus: Yes
  • cURus: No
  • Federal Spec: Yes
  • UL Listing No: No
  • UN SPSC: 39121406
  • UR: No

Dimensions

  • Depth (US): 1.225" (Behind Strap)
  • Height (US): 3.82"
  • Width (US): 1.750"

Technical Information

  • Amps: 15A
  • Volts: 125V
  • Volts (AC): 125
  • Grade Type: Specification

Buy American Act Compliance

  • Country Of Origin: CHINA
  • Buy American Act Status: No

Eco-Benefit Information

  • RoHS Compliant

Video

Overview

UPC 78500719338
GTiN 00785007193381
Width 1.750 in
Size 1.70 L x 1.25 W x 3.75 H In
Color Ivory
Voltage 125 Volt
Type TVSS
Material Nylon
Conductor Size 14 - 10 AWG
Applications Commercial
Mounting Type Wall
Depth 1.225 in
Height 3.82 in
Grade Specification
Country of Origin China
Wire Size 14-10 AWG
Connection Type Back and Side Wired
Wattage Electrical power is expressed in Amps and Volts.
Temperature Rating Operating Temperature: -20C to +55C (-4F to 131F), Storage Temperature: -40C to +85C (-40F to 185F)
Family Brand Name Pass & Seymour
Certifications CULUS
Buy American Compliant No
TC Connection Back and side wire
Duty Rating Extra Heavy Duty
Amperage 15 Amp
Blade Dimensions 1.7 in L x 1.25 in W x 3.75 in H
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
