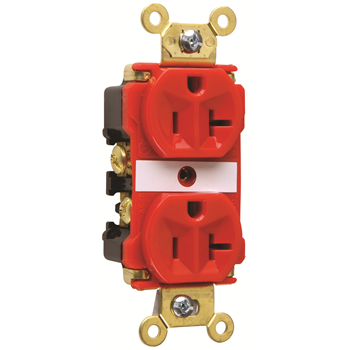

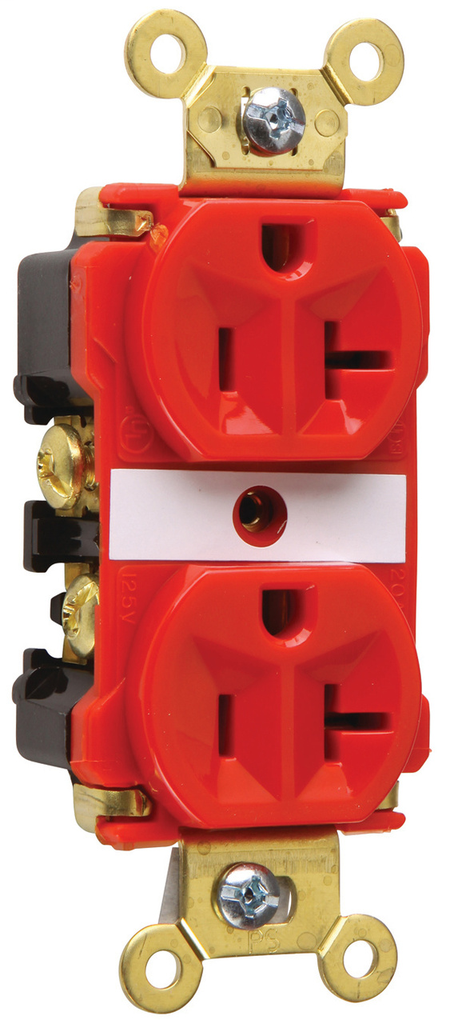

Pass & Seymour 5362-ARED 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Red Nylon Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$45.39/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 5362ARED
North Coast Part # 677486

Features

  • One-piece brass mounting strap with integral ground.
  • Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
  • Two drive screws anchor strap to back body and face.
  • Exclusive patented feature, circuit label on face allows permanent circuit identification.
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and back body.
  • Oversized #10 deep tri-drive head brass terminal and ground screws.
  • Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
  • External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
  • Line terminals accept #14 -- #10 AWG stranded or solid copper clad conductors.
  • Auto-ground clip assures positive ground.
  • Corrosion-resistant models have nickel-plated straps and contacts.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Country Of Origin: MX
  • Special Features: One-piece brass mounting strap with integral ground. Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body. Two drive screws anchor strap to back body and face. Exclusive patented feature, circuit label on face allows permanent circuit identification. .036 inch thick, brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face and back body. Oversized #10 deep tri-drive head brass terminal and ground screws. Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation. External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection. Line terminals accept #14 – #10 AWG stranded or solid copper clad conductors. Auto-ground clip assures positive ground.
  • Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Certifications: CULUS,FEDSPEC
  • Color: Red
  • Amperage: 20 A
  • Product Line: Pass & Seymour
  • NEMA Rating: 5-20R
  • Voltage: 125.0 V
  • Number of Wires: 3.0
  • Wire Size: #14 - #10
  • Application Sector: Industrial
  • Number of Poles: Double Pole
  • Connection: Back and side wire
  • Standard: cULus UL498, CSA C22.2 No. 42
  • Environmental Conditions: Flammability: UL94 V2
  • Dielectric Strength: Withstands 2000V minimum

Certifications

  • Federal Spec Listed: WC596
  • cULus Listed: 140596

Overview

UPC 78500752817
Item Long Description Industrial Extra Heavy-Duty Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Blue
GTiN 00785007528176
Width 1.625 in
Size 1.625 L x .900 W x 3.281 H In
Color Red
Voltage 125 Volt
Type Receptacles
Material Nylon
Applications Industrial
Depth .900 in
Height 3.281 in
Grade Industrial
Country of Origin Mexico
Wire Size 14-10 AWG
Capacity Duplex
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
TC Connection Back and side wire
Duty Rating Extra Heavy Duty
Amperage 20 Amp
Dielectric Strength Withstands 2000V minimum
Number of Poles 2 Pole
Number of Wires 3.0
UNSPSC 39121406
Sub Brand Pass & Seymour
NEMA 5-20R
