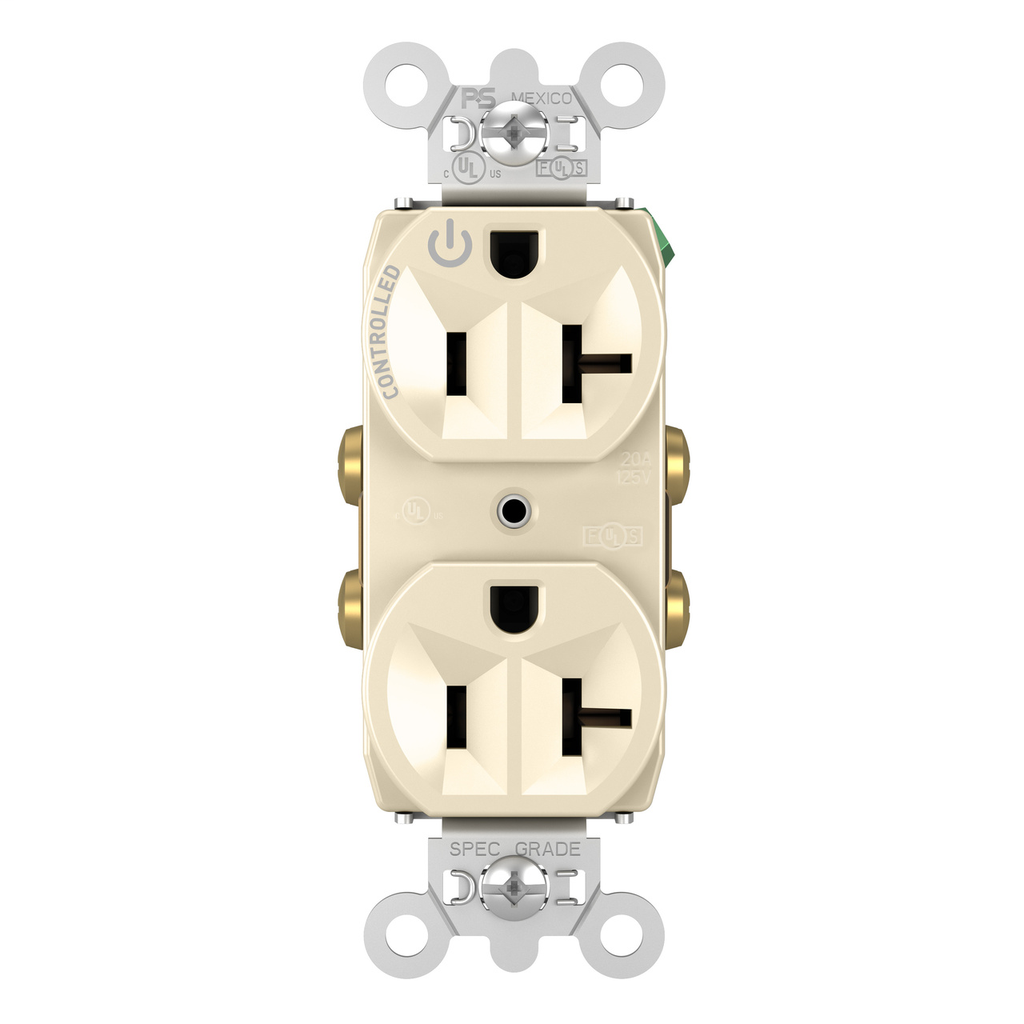

Pass & Seymour 5362-LA 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Light Almond Nylon Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$21.95/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 5362LA
North Coast Part # 334874

Features

  • Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face.
  • 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Country Of Origin: MX
  • Special Features: Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face. 8 hole internal screw-pressure-plate back wire terminals accept #14 – #10 AWG solid or stranded copper or copper-clad conductors. Terminal compartments isolated from each other for positive conductor containment. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.
  • Certifications: FEDSPEC,CULUS
  • Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Amperage: 20 A
  • Product Line: Pass & Seymour
  • NEMA Rating: 5-20R
  • Voltage: 125.0 V
  • Number of Wires: 3.0
  • Wire Size: #14 - #10
  • Application Sector: Commercial
  • Number of Poles: Double Pole
  • Standard: UL498, CSA C22.2 No. 42
  • Connection: Back and side wire
  • Environmental Conditions: Flammability: UL94 V2
  • Dielectric Strength: Withstands 2000V minimum

Certifications

  • Federal Spec Listed: WC596
  • cULus Listed: 140596

Overview

UPC 78500719439
Item Long Description eHard Use Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Yellow
GTiN 00785007194395
Width 1.322 in
Size 1.322 L x .780 W x 3.281 H In
Color Light Almond
Voltage 125 Volt
Type Hard Use
Material Nylon
Conductor Size 14 - 10 AWG
Applications Commercial
Mounting Type Wall
Depth .780 in
Height 3.281 in
Grade Specification
Country of Origin Mexico
Wire Size 14-10 AWG
Capacity Duplex
Connection Type Back and Side Wired
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
TC Connection Back and side wire
Amperage 20 Amp
Dielectric Strength 2000 V
Blade Dimensions 1.322 in L x 0.780 in W x 3.281 in H
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
NEMA 5-20R
