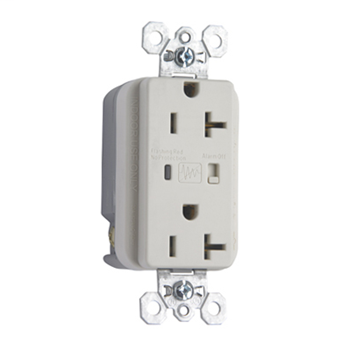

P&S 5362LASP TVSS RECP 20A 125V ALA
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$88.52/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 5362LASP
North Coast Part # 552662

Features

  • Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
  • LED Indication: Steady green = protected, Flashing re = not protected, OFF = no power to unit
  • Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
  • Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
  • Impact-resistant thermoplastic exterior resists impacts and scrapes.
  • Triple-wipe, copper-alloy contacts for superior, more dependable connection.
  • External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw.
  • Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond.
  • For covering patents, see www.legrand.us/patents.

Specifications

  • Country Of Origin: MX
  • Standard: cUL UL1449, UL498: CSA C22.2 No. 42: ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse).
  • Certifications: CULUS
  • Class: IG
  • Amperage: 20 A
  • Product Line: Pass & Seymour
  • Voltage: 125.0 V
  • Application Sector: Commercial
  • Connection: Back and side wire
  • Environmental Conditions: Flammability: UL94 V2
  • Special Features: Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place. LED Indication: steady green = protected, flashing red = not protected, OFF = no power to unit. Audible alarm alert of MOV damage. Alarm able to be turned On/Off. Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation. Impact-resistant nylon exterior resists impacts and scrapes. Triple-wipe, copper-alloy contacts for superior, more dependable connection. External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw. Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond.

Certifications

  • cULus Listed: 140596

Overview

UPC 78500719440
Item Long Description Surge Protective Extra Heavy-Duty Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Specification grade surge suppressor receptacle with audible alarm and LED indicator, ideal for heavy duty power applications. By Pass & Seymour. Back & Side Wire, 20amp 125volt, White.
GTiN 00785007194401
Width 1.70 in
Size 1.70 L x 1.25 W x 3.75 H In
Color Light Almond
Voltage 125 Volt
Type Duplex
Material Nylon
Applications Commercial
Depth 1.25 in
Height 3.75 in
Grade Specification
Country of Origin Mexico
Wire Size 14-10 AWG
Wattage Electrical power is expressed in Amps and Volts.
Temperature Rating Operating Temperature: -20C to +55C (-4F to 131F), Storage Temperature: -40C to +85C (-40F to 185F)
Family Brand Name Pass & Seymour
Certifications CULUS
Buy American Compliant No
TC Connection Back and side wire
Duty Rating Extra Heavy Duty
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
