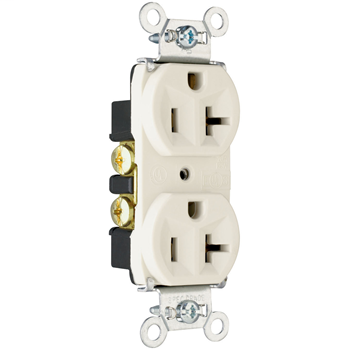

Pass & Seymour 5362-W 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R White Nylon Duplex Receptacle
$26.25/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 5362W
North Coast Part # 13169

Features

  • Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face.
  • 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: White
  • Type: Receptacles
  • Special Features: Back,Side Wire

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 No. 42
  • CSA Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121406
  • UR: No

Dimensions

  • Depth (US): .780"
  • Height (Metric): 3.281"
  • Height (US): 3.281"
  • Width (US): 1.322"

Technical Information

  • Amps: 20A
  • Volts: 125V
  • Volts (AC): 125
  • Capacity: Duplex
  • Grade Type: Specification

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500753625
GTiN 00785007536256
Width 1.322 in
Size 3.3 in
Color White
Voltage 125 Volt
Type Receptacles
Material Thermoplastic
Conductor Size 4 AWG
Applications For Hard use
Mounting Type Wall
Depth .780 in
Height 3.281 in
Grade Specification
Country of Origin Mexico
Wire Size 4 AWG
Capacity Duplex
Connection Type Wire Ground, Back and Side Wire
Family Brand Name Pass & Seymour
Certifications FEDSPEC,CULUS
TC Connection Wire Ground
Amperage 20 Amp
Blade Dimensions 3.3 in
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
