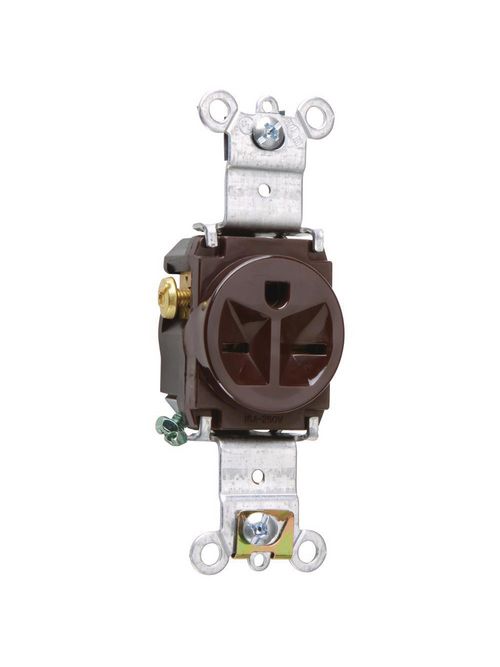

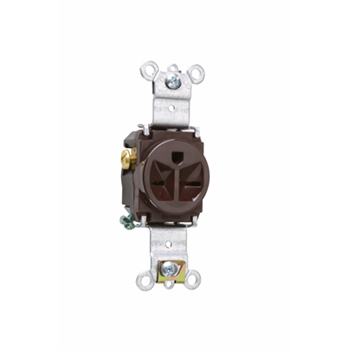

Pass & Seymour 5671 15 Amp 250 VAC 2-Pole 3-Wire NEMA 6-15R Brown Nylon Face Thermoplastic Back Body Single Receptacle

$30.45/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
One-piece brass, triple-wipe power contacts for lasting retention.
Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
Impact-resistant nylon face and thermoplastic back body.
Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire.
Terminal compartments isolated from each other for positive conductor containment.
Tri-drive terminal and mounting screws.
Auto-ground clip assures positive ground.
For covering patents, see www.legrand.us/patents.
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Country Of Origin: MX
Special Features: Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly. One-piece brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face and thermoplastic back body. Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire. Terminal compartments isolated from each other for positive conductor containment. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.
Certifications: CUL,FEDSPEC
Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Color: Brown
Amperage: 15 A
Product Line: Pass & Seymour
NEMA Rating: 6-15R
Voltage: 250.0 V
Number of Wires: 3.0
Wire Size: #14 - #10
Application Sector: Commercial
Number of Poles: Double Pole
Standard: UL498, CSA C22.2 No. 42
Connection: Back and side wire
Environmental Conditions: Flammability: UL94 V2
Dielectric Strength: Withstands 2000V minimum

UPC	78500754892
Item Long Description	Heavy-Duty Spec Grade Single Receptacle Back & Side Wire 15amp 250volt Ivory
GTiN	00785007548921
Finish	Untreated, Gloss
Width	1.32 in
Size	1.32 L x 1.093 W x 3.68 H In
Color	Brown
Voltage	250 Volt
Type	Heavy Duty
Material	Nylon
Conductor Size	14-10 AWG
Applications	Commercial Grade
Mounting Type	Wall, Flush
Depth	1.093 in
Height	3.28 in
Grade	Specification
Country of Origin	Mexico
Wire Size	14-10 AWG
Capacity	Single
Connection Type	Back and Side Wire
Temperature Rating	-40 to 60 C
Family Brand Name	Pass & Seymour
Certifications	CUL,FEDSPEC
TC Connection	Back and side wire
Duty Rating	Heavy Duty
Amperage	15 Amp
Dielectric Strength	2000 V
Blade Dimensions	33.528 mm W x 27.432 mm D x 83.312 mm H
Environmental Conditions	UL 94 Requirements, V2 Rated Flammability
Number of Poles	2 Pole
Number of Wires	3
UNSPSC	39121406
Sub Brand	Pass & Seymour
NEMA	6-15R
