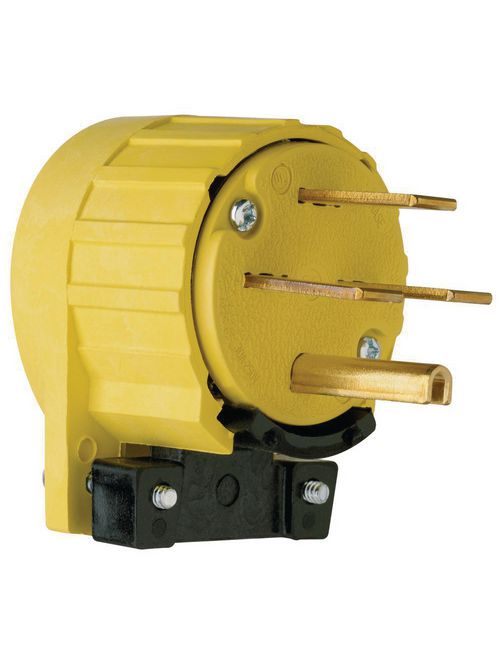

Pass & Seymour 5741-AN 30 Amp 250 VAC 3-Phase 3-Pole 4-Wire NEMA 15-30P Yellow Angled Straight Blade Power Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$91.32/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 5741AN
North Coast Part # 762352

Features

  • Quality Materials, durability, and time-tested design
  • Conforms to NEMA WD-1 and WD-6
  • For covering patents, see www.legrand.us/patents.

Specifications

  • Country Of Origin: MX
  • Amperage: 30 A
  • Standard: UL 498
  • Certifications: CULUS
  • NEMA Rating: 15-30P
  • Type: Straight Blade
  • Product Line: Pass & Seymour
  • Voltage: 125.0 V
  • Wire Size: 10-14Awg
  • Number of Wires: 4.0
  • Number of Poles: 3-Way
  • Application Sector: Commercial
  • Special Features: Angled yellow plug, tri-drive assembly, cord grip screws

Certifications

  • cULus Listed: 146159

Categories

Overview

UPC 78500757411
Item Long Description Plug 30amp 3phase 250volt Angle
GTiN 00785007574111
Width 2.62 in
Size 3.43"
Color Yellow
Voltage 125 Volt
Type Straight Blade
Diameter 1.77 in
Material Nylon
Applications Commercial
Depth 2.12 in
Height 3.43 in
Grade Specification
Country of Origin Mexico
Wire Size 10-14 Awg
Family Brand Name Pass & Seymour
Certifications CULUS
Number of Poles 3 Pole
Number of Wires 4.0
UNSPSC 39121402
Sub Brand Pass & Seymour
NEMA 15-30P
Amperage 30 Amp
