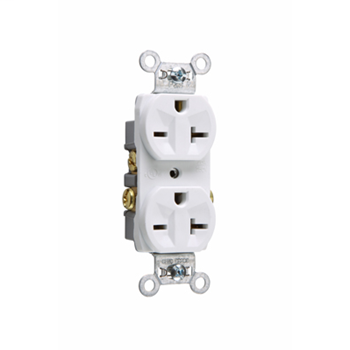

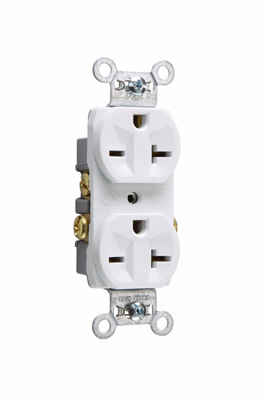

Pass & Seymour 5850W 20 Amp 250 VAC 2-Pole 3-Wire NEMA 6-20R White Nylon Face Thermoplastic Back Body Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$24.73/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 5850W
North Coast Part # 1163668

Features

  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Country Of Origin: MX
  • Phase: 3
  • Certifications: CULUS,FEDSPEC
  • Amperage: 20 A
  • Color: White
  • NEMA Rating: 5-20R
  • Voltage: 250.0 V
  • Product Line: Pass & Seymour
  • Standard: UL 498, WC596
  • Wire Size: 10-14Awg
  • Number of Wires: 3.0
  • Number of Poles: Double Pole
  • Application Sector: Residential/Commercial
  • Special Features: Impact, corrosion resistant, circuit label on face, auto ground clips

Certifications

  • Federal Spec Listed: NO
  • cULus Listed: 140596

Overview

UPC 78500758501
Item Long Description Commercial Spec Grade Duplex Receptacle, Side Wire 20amp 250volt, White
GTiN 00785007585018
Width 1.322 in
Size 4.25x1.25x1.81
Color White
Voltage 250 Volt
Type Receptacles
Material Thermoplastic
Conductor Size 14 - 10 AWG
Applications Residential/Commercial
Mounting Type Wall
Depth 0.78 in
Height 3.281 in
Grade Commercial
Country of Origin Mexico
Wire Size 10-14 Awg
Capacity Duplex
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
Amperage 20 Amp
Blade Dimensions 4.25 x 1.25 x 1.81 in
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
NEMA 5-20R
Number of Phases 3 Phase
