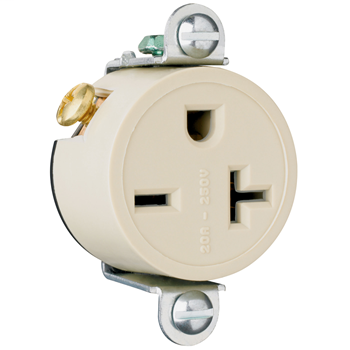

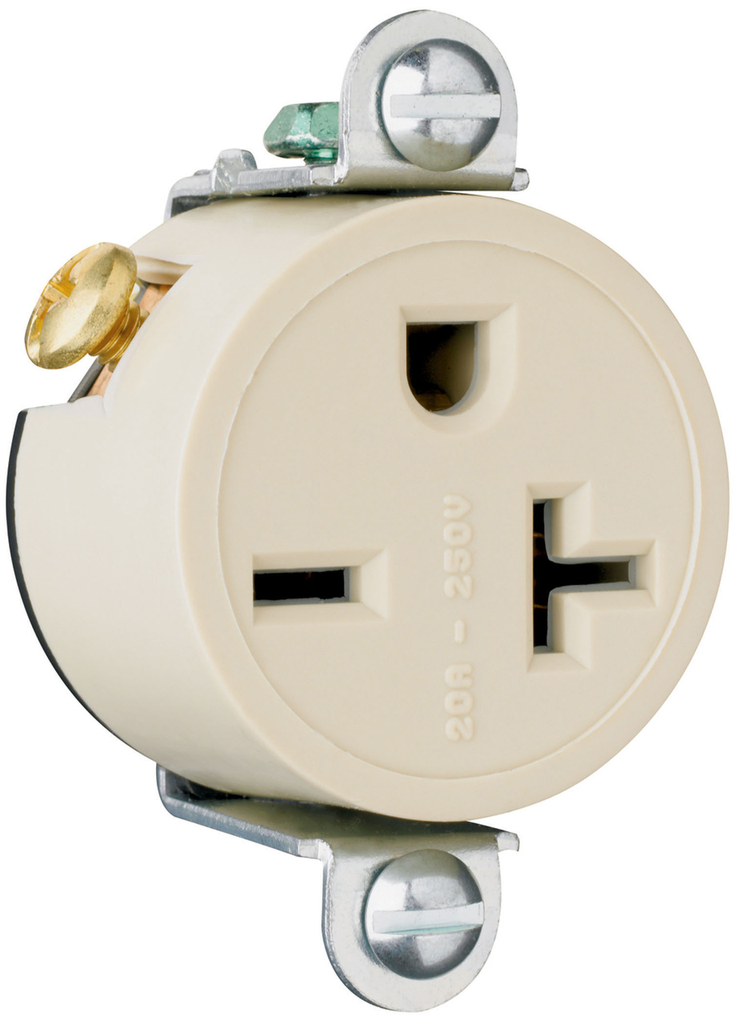

RECP SGL 20A 250V SHORT STRP S-WIRE I
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$16.24/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 5858I
North Coast Part # 550317

Features

  • Auto-ground clip assures positive ground.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
  • Backed-out tri-drive steel terminal screws.
  • One-piece brass triple-wipe power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Country Of Origin: MX
  • Phase: 3
  • Amperage: 20 A
  • Certifications: UL,CSA
  • NEMA Rating: 5-20R
  • Color: Ivory
  • Voltage: 250.0 V
  • Product Line: Pass & Seymour
  • Standard: UL 498, WC596
  • Wire Size: 10-14Awg
  • Number of Wires: 3.0
  • Number of Poles: Double Pole
  • Application Sector: Residential/Commercial
  • Special Features: Impact, corrosion resistant, circuit label on face, auto ground clips

Certifications

  • UL Listed: 140596
  • CSA Listed: 16063

Overview

UPC 78500758581
Item Long Description Short Strap Spec Grade Single Receptacle, Side Wire, 20amp 250volt, White.
GTiN 00785007585810
Width 1.49 in
Size 4.25x1.25x1.81
Color Ivory
Voltage 250 Volt
Type Receptacle
Material Thermoplastic
Applications Residential/Commercial
Depth 1.00 in
Height 1.75 in
Grade Specification
Country of Origin Mexico
Wire Size 10-14 Awg
Capacity Single
Family Brand Name Pass & Seymour
Certifications CSA,UL
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3.0
UNSPSC 39121406
Sub Brand Pass & Seymour
NEMA 5-20R
Number of Phases 3 Phase
