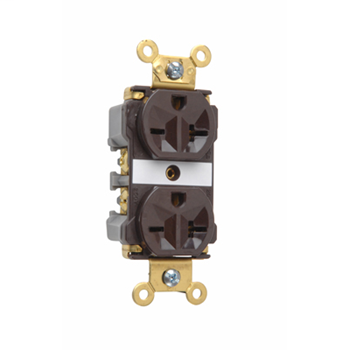

P&S 5862A DUP RECEPT 20A/250VAC BN

Features

• One-piece brass mounting strap with integral ground.
• Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
• Two drive screws anchor strap to back body and face.
• Exclusive patented feature, circuit label on face allows permanent circuit identification.
• .036 inch thick, brass, triple-wipe power contacts for lasting retention.
• Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
• Impact-resistant nylon face and back body.
• Oversized #10 deep tri-drive head brass terminal and ground screws.
• Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
• External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
• Line terminals accept #14 -- #10 AWG stranded or solid copper clad conductors.
• Auto-ground clip assures positive ground.
• Corrosion-resistant models have nickel-plated straps and contacts.
• For covering patents, see www.legrand.us/patents.
• For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

• Color: Brown
• Type: Receptacles
• Duty: Extra Heavy Duty
• Special Features: Back,Side Wire

Listing Agencies/Third Party Certifications

• RoHS: Yes
• CSA Listing Info: C22.2 No. 42
• CSA Standard: Yes
• Federal Spec: Yes
• UL Listing No: UL498
• UL Standard: Yes
• UN SPSC: 39121406
• UR: No

Dimensions

• Depth (US): .900"
• Height (US): 3.281"
• Width (US): 1.625"

Technical Information

• Amps: 20A
• Volts: 250V
• Volts (AC): 250
• Capacity: Duplex
• Grade Type: Industrial

Buy American Act Compliance

• Country Of Origin: MEXICO
• Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

• RoHS Compliant
