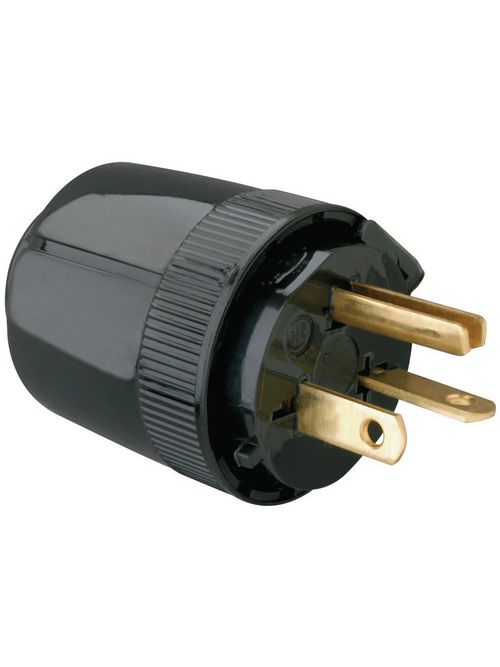

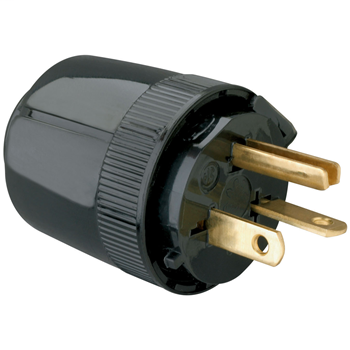

Pass & Seymour 5864-BK 20 Amp 250 VAC 2-Pole 3-Wire NEMA 6-20P Black Nylon Dead Front Polarized Straight Blade Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$10.70/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 5864BK
North Coast Part # 543472

Features

  • All nylon construction, provides excellent impact and chemical resistance.
  • Simple turn and twist assembly for quick installation.
  • Ready-to-wire from factory, saves time and money.
  • All black, perfect for stage and entertainment applications.
  • Internal finger grips automatically adjust to securely grip the cord jacket.
  • For covering patents, see www.legrand.us/patents.

Specifications

  • Country Of Origin: MX
  • Amperage: 20 A
  • Standard: UL 498
  • Certifications: CULUS
  • NEMA Rating: 6-20P
  • Color: Black
  • Type: Straight Blade
  • Product Line: Pass & Seymour
  • Voltage: 250.0 V
  • Wire Size: 10-14Awg
  • Number of Wires: 3.0
  • Application Sector: Commercial
  • Number of Poles: Double Pole
  • Special Features: Angled yellow plug, tri-drive assembly, cord grip screws

Certifications

  • cULus Listed: 146159

Overview

UPC 78500758641
Item Long Description Straight Blade Plug 20amp 250volt Dead Front
GTiN 00785007586411
Size 2"
Color Black
Voltage 250 Volt
Type Straight Blade
Diameter 2.562 in
Material Nylon
Applications Commercial
Depth 1.840 in
Height 1.530 in
Country of Origin Mexico
Wire Size 10-14 Awg
Family Brand Name Pass & Seymour
Certifications CULUS
Duty Rating Medium Duty
Number of Poles 2 Pole
Number of Wires 3.0
UNSPSC 39121402
Sub Brand Pass & Seymour
NEMA 6-20P
Amperage 20 Amp
