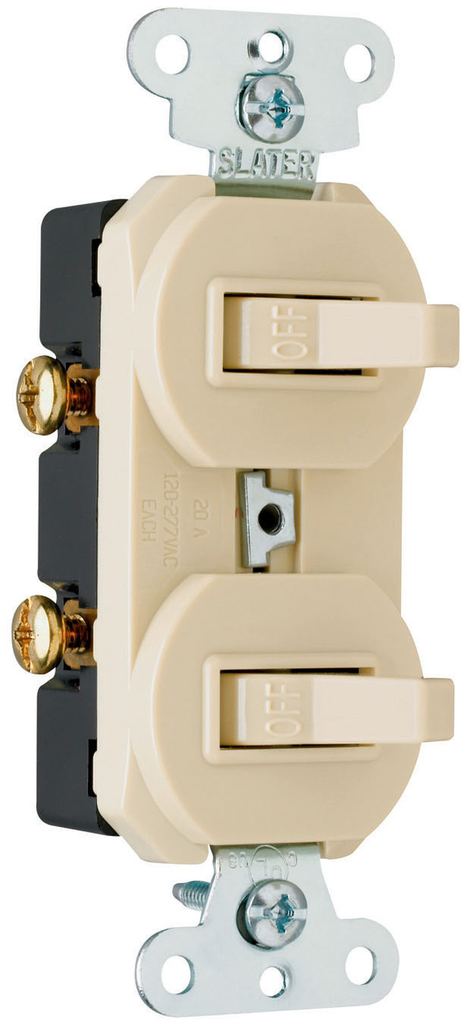

Pass & Seymour 670-IG 20 Amp 120/277 VAC 1-Pole Ivory Grounding Duplex Combination Switch
$4,390.67/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 670IG
North Coast Part # 663981

Features

  • Easily accessible break-off separate or common feed.
  • Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.
  • Side wire #12 and #14 AWG.
  • Two devices fit into the space of one.
  • Grounding combination devices meet NEC Requirements.
  • Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.
  • For covering patents, see www.legrand.us/patents.

Specifications

  • Country Of Origin: MX
  • Special Features: Easily accessible break-off for separate or common feed. Side wire #12 and #14 AWG. Two devices fit into the space of one. Grounding combination devices meet NEC Requirements.
  • Certifications: CULUS
  • Standard: UL20
  • Amperage: 20.0 A
  • Color: Ivory
  • Type: Combination
  • Product Line: Pass & Seymour
  • Actuator: Toggle
  • Action: (2) SP
  • Connection: Side wire
  • Operating Cycles: 30000.0
  • Contact Configuration: N-O
  • Number of Poles: Single Pole
  • Voltage: 0.433212996389892 V
  • Contact Rating: 20 Amp, 120/277 VAC
  • Application Sector: Residential/Commercial
  • Environmental Conditions: Flammability: UL94 V2

Certifications

  • cULus Listed: 140597

Overview

UPC 78500700602
GTiN 00785007006025
Width 1.32 in
Size 1.32 L x 0.94 W x 4.06 H In
Color Ivory
Operating Temperature Maximum continuous +60C, minimum -30C
Voltage 0.433 Volt
Type Combination
Applications Residential/Commercial
Depth 0.94 in
Height 3.28 in
Country of Origin Mexico
Family Brand Name Pass & Seymour
Certifications CULUS
TC Connection Side wire
Actuator Toggle
Contact Configuration N-O
Amperage 20 Amp
Contact Rating 20 Amp, 120/277 VAC
Number of Poles 1 Pole
Action SP
Operating Cycles 30k
UNSPSC 39121406
Sub Brand Pass & Seymour
