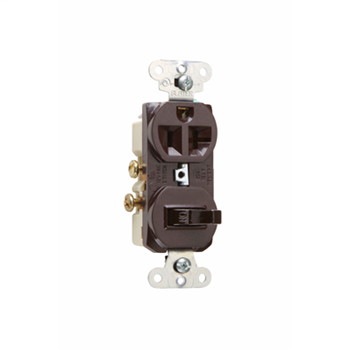

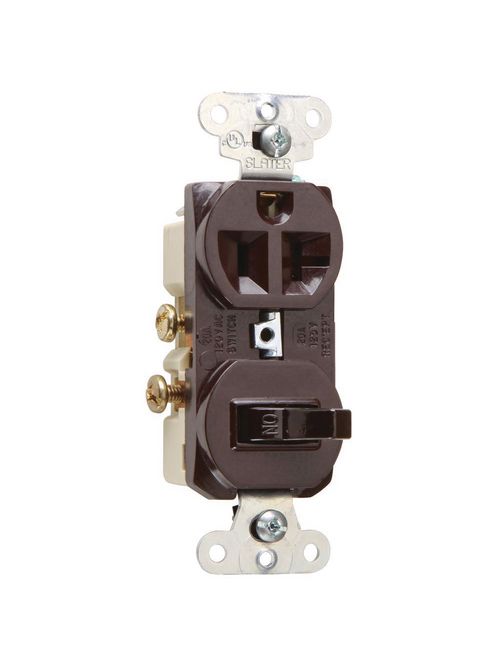

P&S 671 COMBO 20A 1 SW 1P-120V 1REC
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$7,414.85/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 671
North Coast Part # 548368

Features

  • Easily accessible break-off separate or common feed.
  • Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.
  • Side wire #12 and #14 AWG.
  • Two devices fit into the space of one.
  • Grounding combination devices meet NEC Requirements.
  • Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.

Specifications

  • Country Of Origin: MX
  • Special Features: Easily accessible break-off for separate or common feed. Side wire #12 and #14 AWG. Two devices fit into the space of one. Grounding combination devices meet NEC Requirements.
  • Amperage: 20.0 A
  • Certifications: CULUS
  • Color: Brown
  • Actuator: Toggle
  • Product Line: Pass & Seymour
  • Voltage: 120.0 V
  • Standard: UL20, UL498
  • Connection: Side wire
  • Action: SP & Recptacle
  • Operating Cycles: 30000.0
  • Contact Configuration: N-O
  • Number of Poles: Single Pole
  • Contact Rating: 20 Amp, 120/125 VAC
  • Application Sector: Residential/Commercial
  • Environmental Conditions: Flammability: UL94 V2

Certifications

  • cULus Listed: 140597

Overview

UPC 78500767100
Item Long Description Our standard Pass & Seymour combination switches allow you to add lights to any room in your home without having to add or replace wall boxes.
GTiN 00785007671001
Width 1.32 in
Size 1.32 L x 0.94 W x 4.06 H In
Color Brown
Operating Temperature Maximum continuous +60C, minimum -30C
Voltage 120 Volt
Type Standard
Applications Residential/Commercial
Depth .94 in
Height 3.28 in
Country of Origin Mexico
Family Brand Name Pass & Seymour
NEMA 5-20R
TC Connection Side wire
Actuator Toggle
Contact Configuration N-O
Amperage 20 Amp
Contact Rating 20 Amp, 120/125 VAC
Number of Poles 1 Pole
Action SP
Operating Cycles 30k
UNSPSC 39121406
Sub Brand Pass & Seymour
Certifications CULUS
