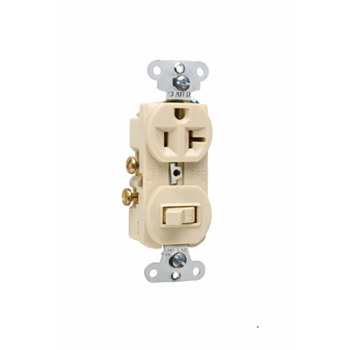

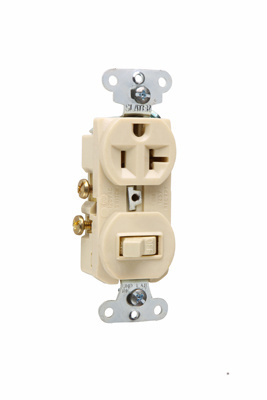

Pass & Seymour 671-I 20 Amp 120/125 VAC NEMA 5-20R Ivory Combination 1-Pole Switch/Single Receptacle
$6,613.72/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 671I
North Coast Part # 549453

Features

  • Easily accessible break-off separate or common feed.
  • Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.
  • Side wire #12 and #14 AWG.
  • Two devices fit into the space of one.
  • Grounding combination devices meet NEC Requirements.
  • Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.

Specifications

General Info

  • Color: Ivory
  • Type: Standard
  • Number Of Poles: 1

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • UL Listing No: 20, 498
  • UL Standard: Yes
  • UN SPSC: 39121406

Dimensions

  • Depth (US): .94"
  • Height (US): 3.28"
  • Width (US): 1.32"

Technical Information

  • Amps: 20A
  • NEMA Configuration Number: 5-20R
  • NEMA Rating: Yes
  • Volts: 120/125

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500767101
GTiN 00785007671018
Width 1.32 in
Size 1.32 L x 0.94 W x 4.06 H In
Color Ivory
Operating Temperature Maximum continuous +60C, minimum -30C
Voltage 120 Volt
Type Standard
Applications Residential/Commercial
Depth .94 in
Height 3.28 in
Country of Origin Mexico
Family Brand Name Pass & Seymour
NEMA 5-20R
Certifications CULUS
TC Connection Side wire
Actuator Toggle
Contact Configuration N-O
Amperage 20 Amp
Contact Rating 20 Amp, 120/125 VAC
Number of Poles 1 Pole
Action SP
Operating Cycles 30k
UNSPSC 39121406
Sub Brand Pass & Seymour
