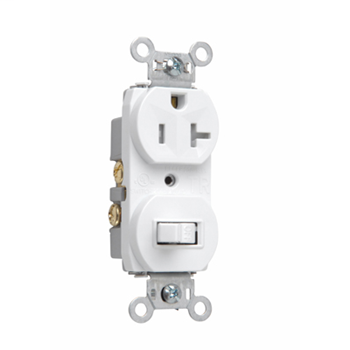

P&S 671TRW TR COMBO 1P SW + REC 20A
$52.46/ea
In Stock | 67 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 671TRW
North Coast Part # 998069

Features

  • Easily accessible break-off separate or common feed.
  • Side wire #12 and #14 AWG.
  • Two devices fit into the space of one.
  • Grounding combination devices meet NEC Requirements.
  • Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.
  • For covering patents, see www.legrand.us/patents.

Specifications

General Info

  • Color: White
  • Type: Tamper-Resistant
  • Number Of Poles: 1
  • Special Features: Tamper Resistant

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • UL Listing No: 20, 498
  • UL Standard: Yes
  • UN SPSC: 39121406

Dimensions

  • Depth (US): 1.15"
  • Height (US): 3.81"
  • Width (US): 1.32"

Technical Information

  • Amps: 20A
  • NEMA Configuration Number: 5-20R
  • NEMA Rating: Yes
  • Volts: 120/125

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500724082
GTiN 00785007240825
Width 1.32 in
Size 1.32 L x 0.94 W x 4.06 H In
Color White
Operating Temperature Maximum continuous +60C, minimum -30C
Voltage 120 Volt
Type Tamper-Resistant
Applications Residential/Commercial
Depth 1.15 in
Height 3.81 in
Country of Origin Mexico
Family Brand Name Pass & Seymour
NEMA 5-20R
Certifications CULUS
TC Connection Side wire
Actuator Toggle
Contact Configuration N-O
Amperage 20 Amp
Contact Rating 20 Amp, 120/125 VAC
Number of Poles 1 Pole
Action SP
Operating Cycles 30k
UNSPSC 39121406
Sub Brand Pass & Seymour
