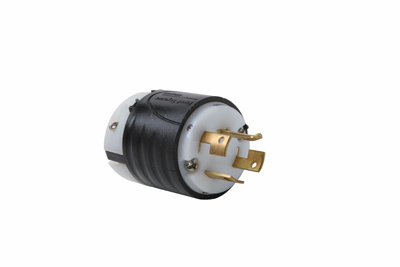

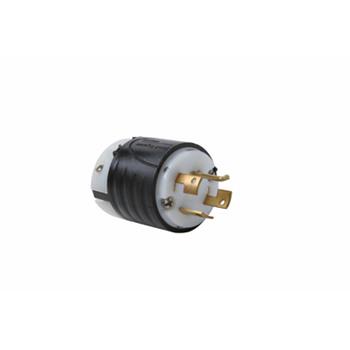

Pass & Seymour 7411-SS 20 Amp 120/208 VAC Star 3-Phase 4-Pole 4-Wire Black and White Nylon Straight Locking Plug
$52.22/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 7411SS
North Coast Part # 600701

Features

  • Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
  • Raised ribs provide non-slip gripping profile for turning to lock and unlock.
  • Double dovetail design provides superior protection against cord pull-out forces.
  • Impact- and corrosion-resistant durable nylon 6 shell material.
  • Rounded back contour reduces snags and hang-ups on the job site.
  • Scallop shell design provides non-slip gripping surface for insertion and withdrawal.
  • Visible stamped NEMA configuration and device rating.
  • New-design external cord grips provide visible assurance of safe and proper cord retention.
  • Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber.

Specifications

General Info

  • Color: Black, White
  • Type: Plug
  • Number Of Wires: 4
  • Special Features: Non-NEMA

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • Federal Spec: Yes
  • UL Listing No: 498
  • UL Standard: Yes
  • UN SPSC: 39121403

Dimensions

  • Diameter (US): 2.20"
  • Length (US): 3.75"

Technical Information

  • Amps: 20A
  • Volts: 120/208V
  • Volts (AC): 120/208

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500774111
GTiN 00785007741117
Length 3.75 in
Size 1.5 in
Color White,Black
Voltage 208 Volt
Type Plug
Diameter 2.20 in
Material Nylon
Conductor Size 4 AWG
Applications Industrial Spec Grade
Mounting Type Recessed/Flush
Country of Origin Mexico
Wire Size 4 AWG
Family Brand Name Pass & Seymour
Certifications UL
Amperage 20 Amp
Blade Dimensions 1-1/2 in
Number of Poles 3 Pole
Number of Wires 4
UNSPSC 39121403
Sub Brand Pass & Seymour
