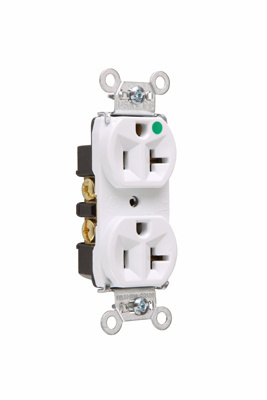

Pass & Seymour 8300-HW 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R White Nylon Face PVC Back Body Compact Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
$44.74/ea
In Stock | 109 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 8300HW
North Coast Part # 782

Features

  • Impact-resistant nylon face.
  • One-piece heat-treated triple-wipe brass power contacts.
  • Easily accessible break-off line contact connecting tab for split circuit wiring.
  • Corrosion-resistant, zinc-plated steel strap is locked in.
  • Internal screw-pressure-plate back wire and side wire line terminals accept #14 : #10 AWG copper or copper-clad conductors.
  • High strength thermoplastic back body.
  • Back wire holes allow entry of conductor insulation partially into body but not into wiring compartment.
  • Auto-ground clip assures positive ground.
  • Compact design for easy installation.
  • Tri-drive terminal and mounting screws.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Country Of Origin: MX
  • Amperage: 20 A
  • Standard: UL 498
  • Certifications: CULUS
  • NEMA Rating: 5-20R
  • Color: White
  • Product Line: Pass & Seymour
  • Voltage: 125.0 V
  • Wire Size: 4 AWG
  • Number of Wires: 3.0
  • Connection: Wire Ground
  • Application Sector: Industrial
  • Number of Poles: Double Pole
  • Special Features: Back & side wire, heavy duty compact design

Certifications

  • cULus Listed: 140596

Overview

UPC 78500783005
GTiN 00785007830057
Finish Untreated
Width 1.322 in
Size 3.3 in
Color White
Voltage 125 Volt
Type Compact Design,Receptacles
Material Thermoplastic
Conductor Size 4 AWG
Applications Industrial Spec Grade
Mounting Type Wall, Flush
Depth .780 in
Height 3.281 in
Grade Hospital
Country of Origin Mexico
Wire Size 4 AWG
Capacity Duplex
Connection Type Wire Ground
Family Brand Name Pass & Seymour
Certifications CULUS
TC Connection Wire Ground
Duty Rating Heavy Duty
Amperage 20 Amp
Blade Dimensions 33.5 mm W x 25 mm D x 83.3 mm H
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
NEMA 5-20R
